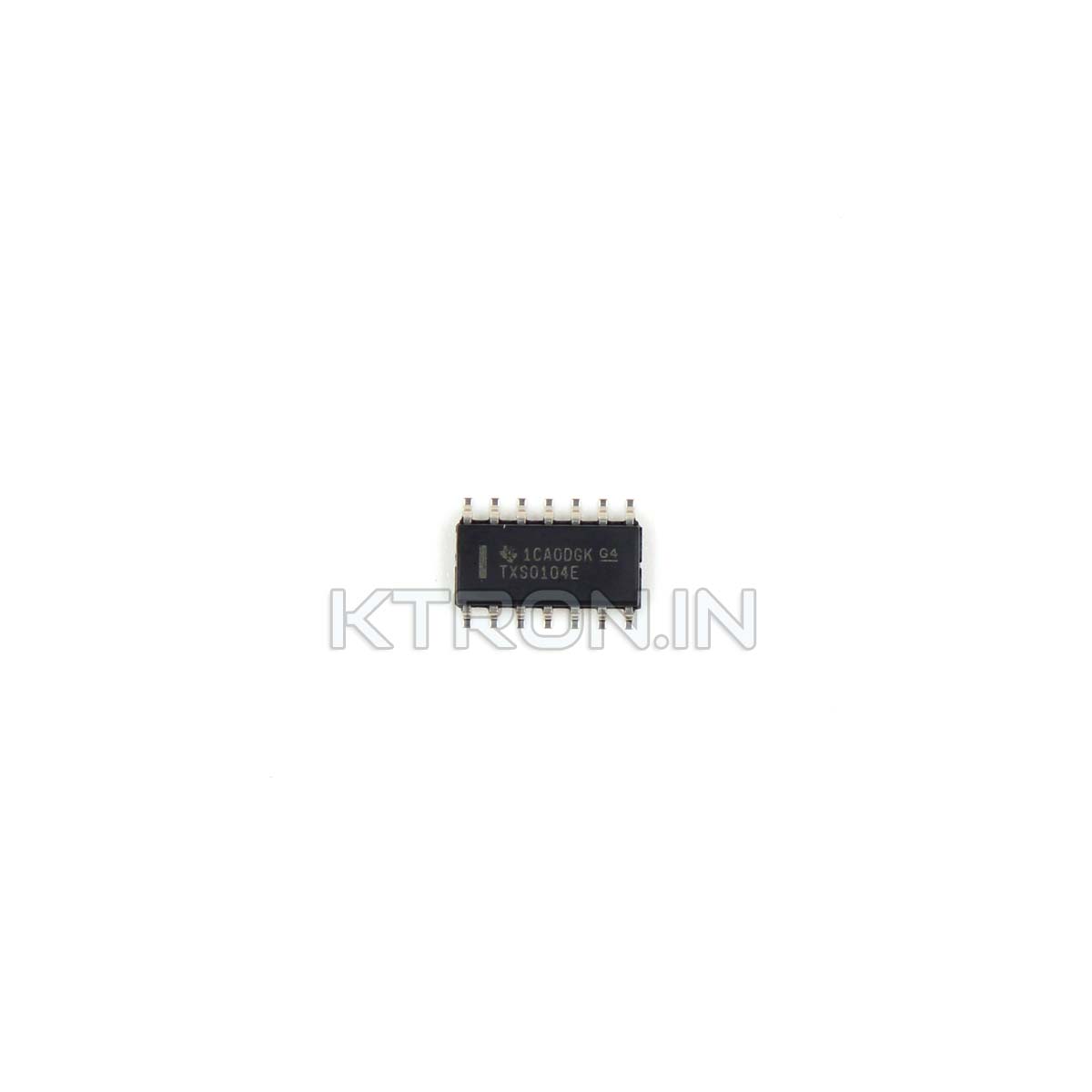

TXS0104EDR 4-Bit Bidirectional Voltage-Level Translator SOIC-14

This TXS0104EDR 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 3.6 V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.

The TXS0104EDR is designed so that the OE input circuit is supplied by VCCA. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

Features:

• No Direction-Control Signal Needed
• Max Data Rates
  – 24 Mbps (Push Pull)
  – 2 Mbps (Open Drain)
• TXS0104EDR is Available in the Texas Instruments NanoFree™ Package
• 1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B port (VCCA ≤ VCCB)
• No Power-Supply Sequencing Required – VCCA or VCCB Can Be Ramped First
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
  – A Port
  2000-V Human-Body Model (A114-B)
  200-V Machine Model (A115-A)
  1000-V Charged-Device Model (C101)
  – B Port
  15-kV Human-Body Model (A114-B)
  200-V Machine Model (A115-A)
  1000-V Charged-Device Model (C101)
• IEC 61000-4-2 ESD (B Port)
  – ±8-kV Contact Discharge
  – ±10-kV Air-Gap Discharge
