LU23031-V2 HAWK A1 Multi Constellation GNSS Receiver – Locosys

9,133.00 (Excl. of GST 18%)
GST Credit of 1,643.94available.
Know More

Only 1 left in stock

  • DC supply voltage: 3.3V ~ 5.0V
  • Support 135 channels
  • Update rate: 5Hz default, up to 10Hz
  • Input current: 87 mA
  • PPS: 100ms pulse width, 1.8Vdc

9,133.00 (Excl. of GST 18%)
GST Credit of 1,643.94available.
Know More

All orders placed after cut off time on 10th Aug, 2022, and on 11th Aug, 2022 will be dispatched on 12th Aug, 2022

Description

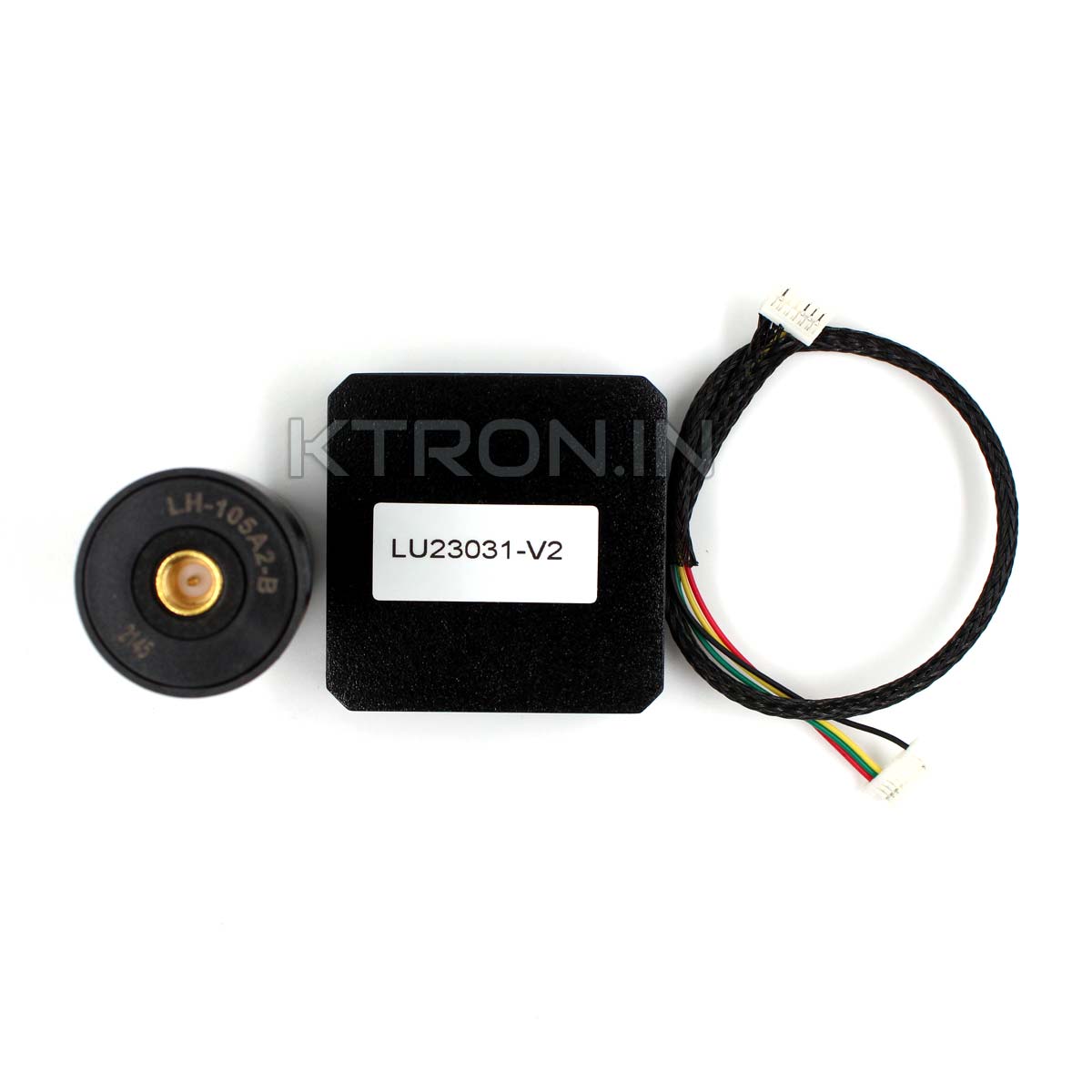

LU23031-V2 HAWK A1 multi constellation GNSS receiver from Locosys is dual-frequency GNSS (RTK)* receiver designed for Pixhawk(PX4)-based platform UAV. The receiver is capable of concurrently tracking all global civil navigation systems, including GPS, GLONASS, GALILEO, BEIDOU and QZSS. It acquires both L1 and L5 signals at a time while providing the centimeter-level RTK positioning accuracy.

The built-in lightweight helical antenna in LU23031-V2 HAWK A1 Multi Constellation GNSS Receiver not only enhances GNSS (RTK)* positioning stability, but also increases the flight time of the drone. The fast Time-To-First-Fix, GNSS (RTK)*convergence, superior sensitivity, low power consumption make it a better choice for Pixhawk(PX4)-based platform UAV.

* Note: RTK is optional

FEATURES

  • Concurrent reception of L1 and L5 band signals
  • Support GPS, GLONASS,BEIDOU, GALILEO, QZSS
  • Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)
  • Support 135-channel GNSS
  • Fast TTFF at low signal level
  • Free hybrid ephemeris prediction to achieve faster cold start
  • Default 5Hz, up to 10 Hz update rate*
  • Build-in super capacitor to reserve system data for rapid satellite acquisition
  • Three LED indicator for Power, PPS and Data transmit
  • *Note: SBAS support 5Hz only.

APPLICATIONS

  • Unmanned aerial vehicle (UAV) positioning and navigation

Specification

Additional information

Weight65 g
