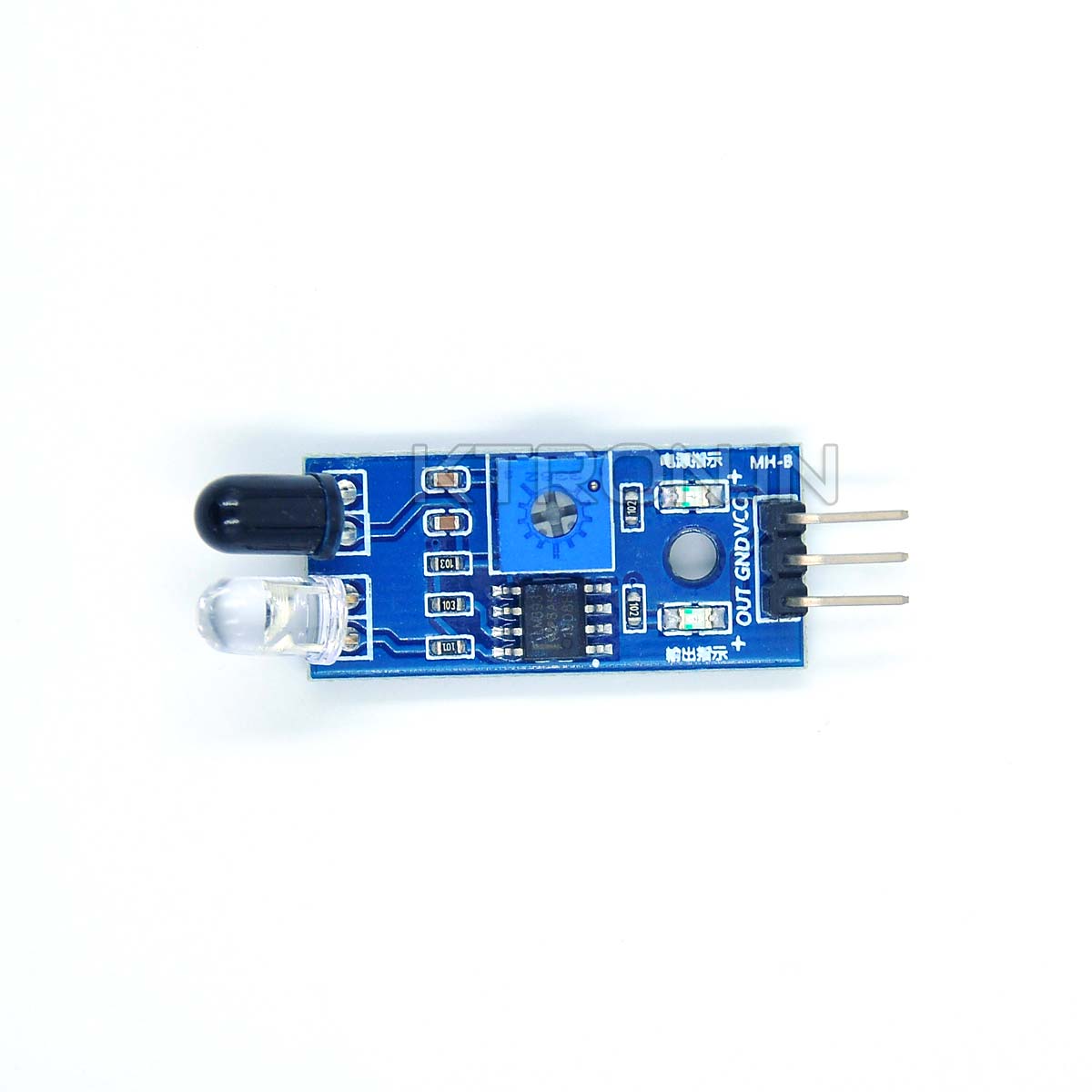

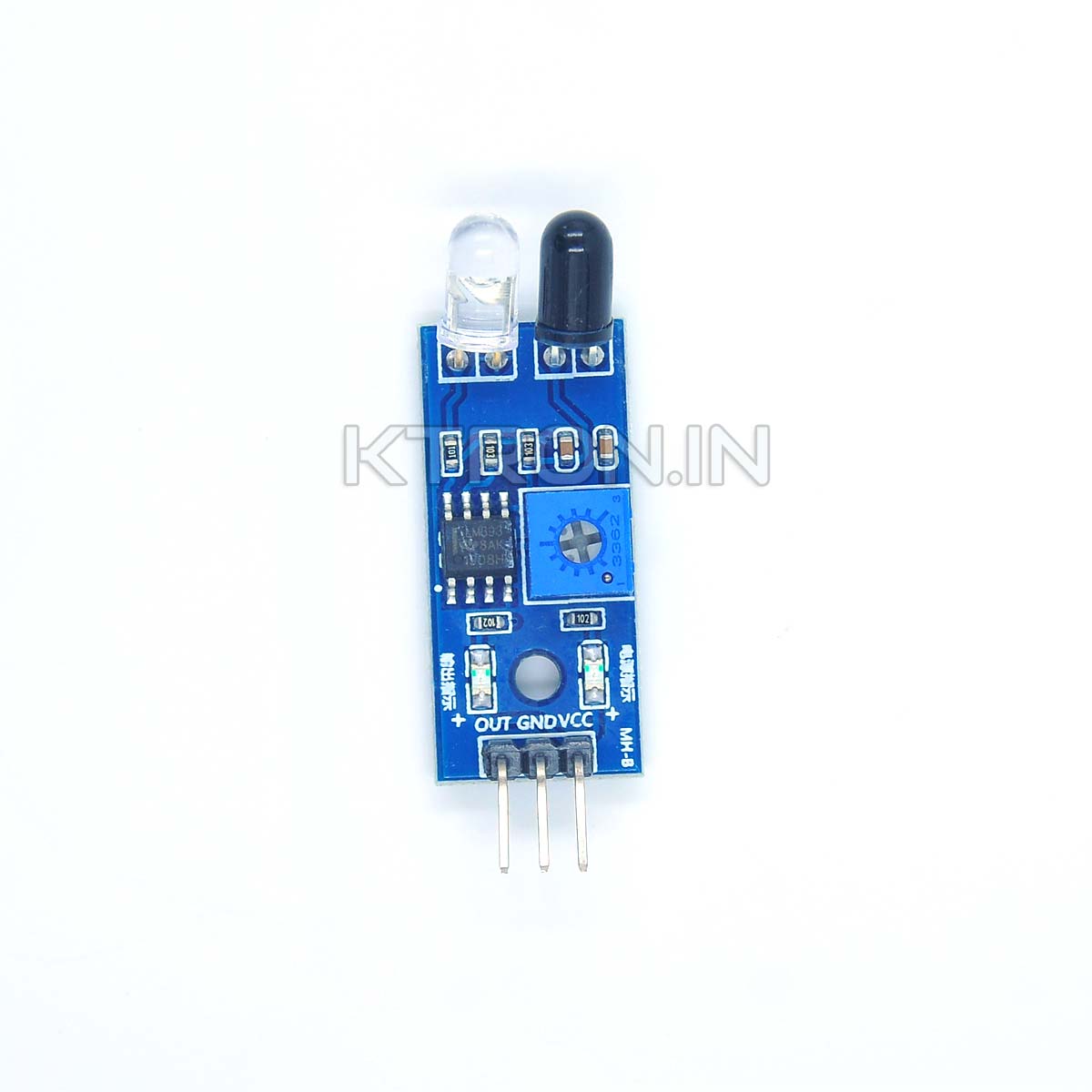

IR Sensor Module – Infrared Proximity Sensor
₹27.00 (Incl. of GST 18%)
GST Credit of ₹4.12available.
Know More
- Infrared Based Object Detection Sensor
- Adjustable Sensitivity
- Measuring Range: 2 to 10 cm
- Operating Voltage: 3 to 5 VDC
Frequently Bought Together
- This item: IR Sensor Module - Infrared Proximity Sensor(₹27.00 Incl. of GST)
- 2 Channel 5V Relay Module - Optoisolated(₹88.50
₹116.01Incl. of GST) - 6V Mini Submersible Water Pump(₹42.00 Incl. of GST)
- Arduino Nano R3 CH340G Compatible Board(₹185.00
₹315.00Incl. of GST)
Description
The IR Proximity Sensor has a pair of infrared transmitter and receiver tube. The infrared light emitting diode emits a certain frequency. So, when it encounters an object, it reflects from the surface of object. The IR receiver diode, senses the reflected IR light. The signal from IR receiver diode is fed into a comparator circuit, which will provide output to the MCU.
The sensitivity of the IR Sensor module is adjustable using the onboard variable resistor.
Specifications of IR Sensor Module:
- Operating Voltage: 3 to 5 VDC
- Detection Range: 2 to 10 cm
- Detection Angle: 35°
- Mounting Hole: 3mm Diameter
Connections:
- Vcc : Input Voltage
- GND : Ground
- Out : Output Signal
Specification
Additional information
| Weight | 3.5 g |
|---|
