ESP32-WROOM-32 WiFi + BT + BLE Module

223.50 (Incl. of GST 18%)
GST Credit of 34.09available.
Know More

Out of stock

  • Wifi Protocols: 802.11 b/g/n
  • Wi-Fi+BT+BLE MCU Module
  • On Chip Hall Sensor
  • Integrated Crystal of 40 Mhz
  • Integrated SPI Flash of 4 MB
  • Recommended Voltage: 3.3V
  • Operating Current: Average 80 mA
SKU: KSTM0127 Categories: , Tags: , , , ,

Quantity based pricing table

MinMaxUnit Price
19223.50
1019222.38
2049221.27
5099220.15
100And more.219.03

223.50 (Incl. of GST 18%)
GST Credit of 34.09available.
Know More

Description

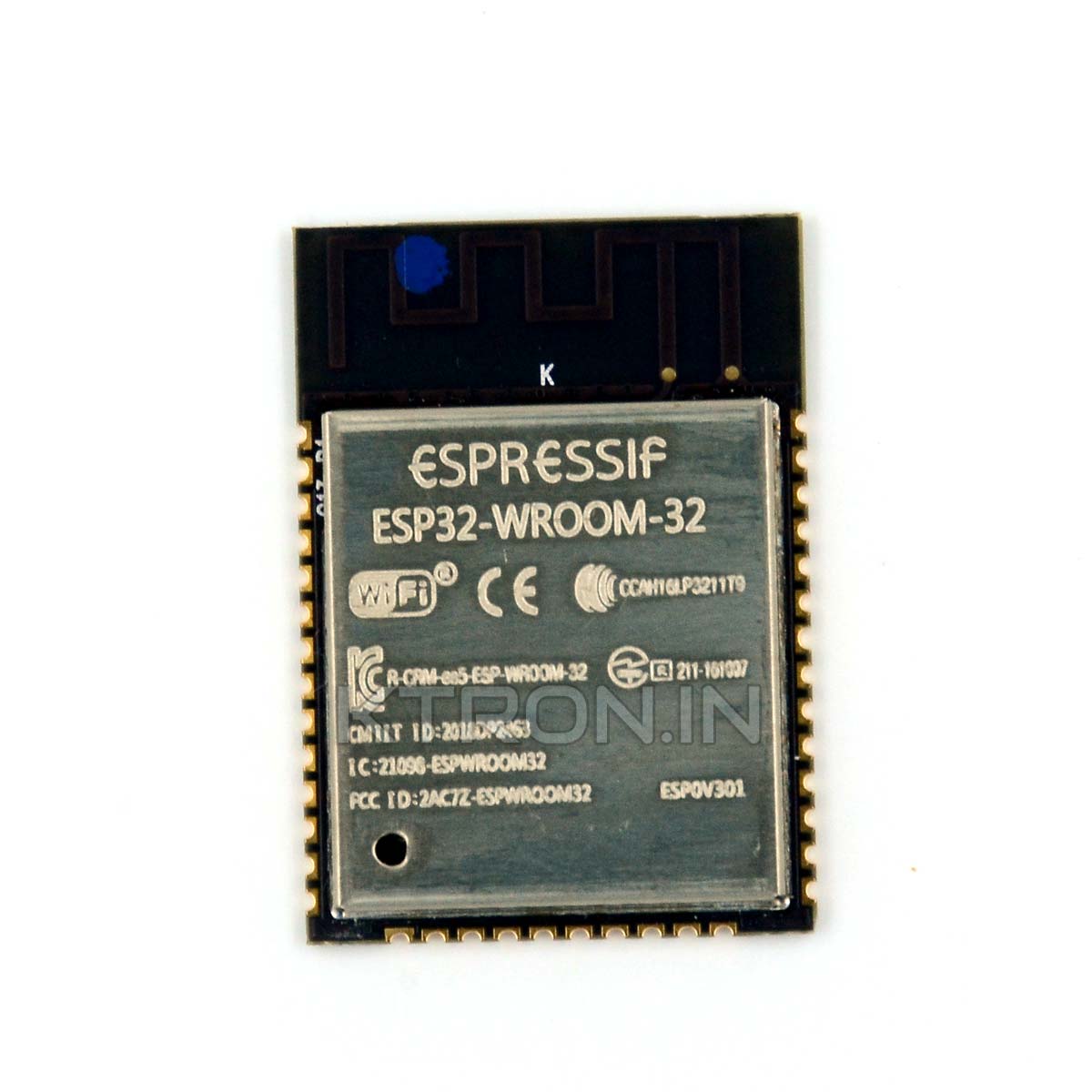

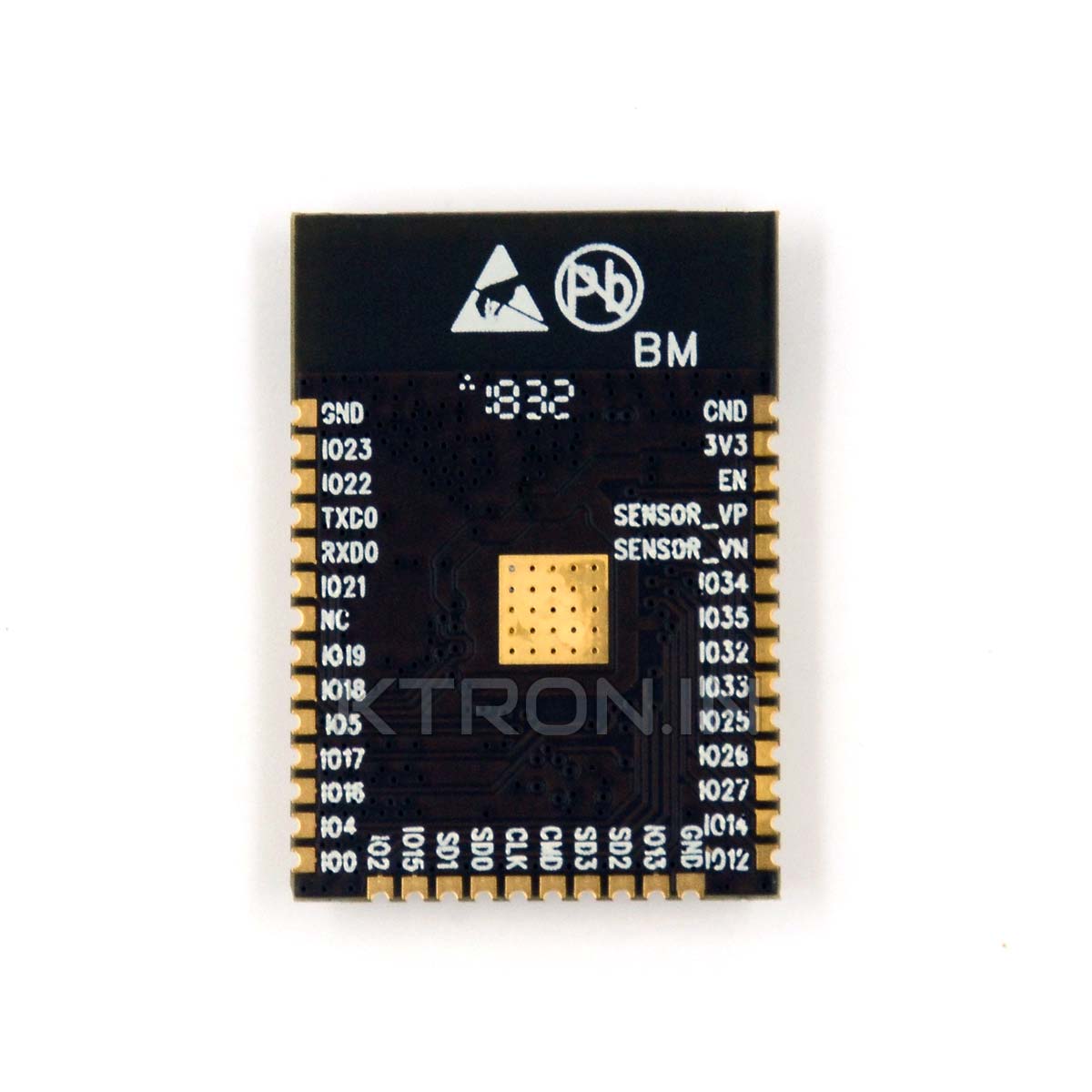

ESP32-WROOM-32 is a powerful, generic WiFi + Bluetooth + Bluetooth Low Energy MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.

At the core of this ESP32-WROOM-32 module is the ESP32-D0WDQ6 chip. This chip also as compared the ESP32-D0WD contains the 2 CPU cores, and operates on same adjustable frequency of 80 Mhz to 240 Mhz. Out of this 2 cores, the main processor can be turned off and co-processor can be used for monitoring of peripheral changes, and threshold levels. The actual difference between ESP32-D0WDQ6 and ESP32-D0WD is only that ESP32-D0WD is a smaller package. The ESP32-D0WDQ6 has peripherals like capactive touch sensors, Hall sensors, SD Card Interface, Ethernet, high speed SPI, UART, I2C and I2S.

The integration of Bluetooth, Bluetooth Low Energy and WiFi in a single module, ensures that wide range of applications can be targeted. Also, it ensures that the module is all rounder.

The sleep current of the ESP32 chip is less than 5 µA. So, it makes the module suitable for battery powered and wearable electronics applications. The module supports a data rate of up to 150 Mbps, and 20 dBm output power at the antenna to ensure the widest physical range.

Difference in ESP32 Series:

When compared to ESP32-WROOM-32, ESP32-WROOM-32D or ESP32-WROOM-32U has better RF Performance, and uses a smaller package of the MCU.

Difference Compared to ESP8266 Series:

As compared to ESP8266-12E / 12F modules, the ESP32 based modules have Bluetooth, more pins, higher computing capacity, with same level power consumption. Thereby making them a good choice for Iot, and automation related devices.

Features:

  • 802.11 b/g/n
  • Frequency: 2.4 Ghz ~ 2.5 Ghz
  • Bluetooth Protocols: BLE v4.2 BR/EDR and BLE specification
  • On Chip Hall Sensor
  • Integrated Cyrstal of 40 Mhz
  • Integrated SPI Flash of 4 MB
  • Recommended Voltage: 3.3 V
  • Operating Current: Average 80 mA
  • Minimum Current Delivered by Power Supply: 500 mA
  • Brand: ESPRESSIF
  • RoHS/REACH Certified

Specification

Additional information

Weight4.5 g
Dimensions18 × 25.5 × 3.10 cm
