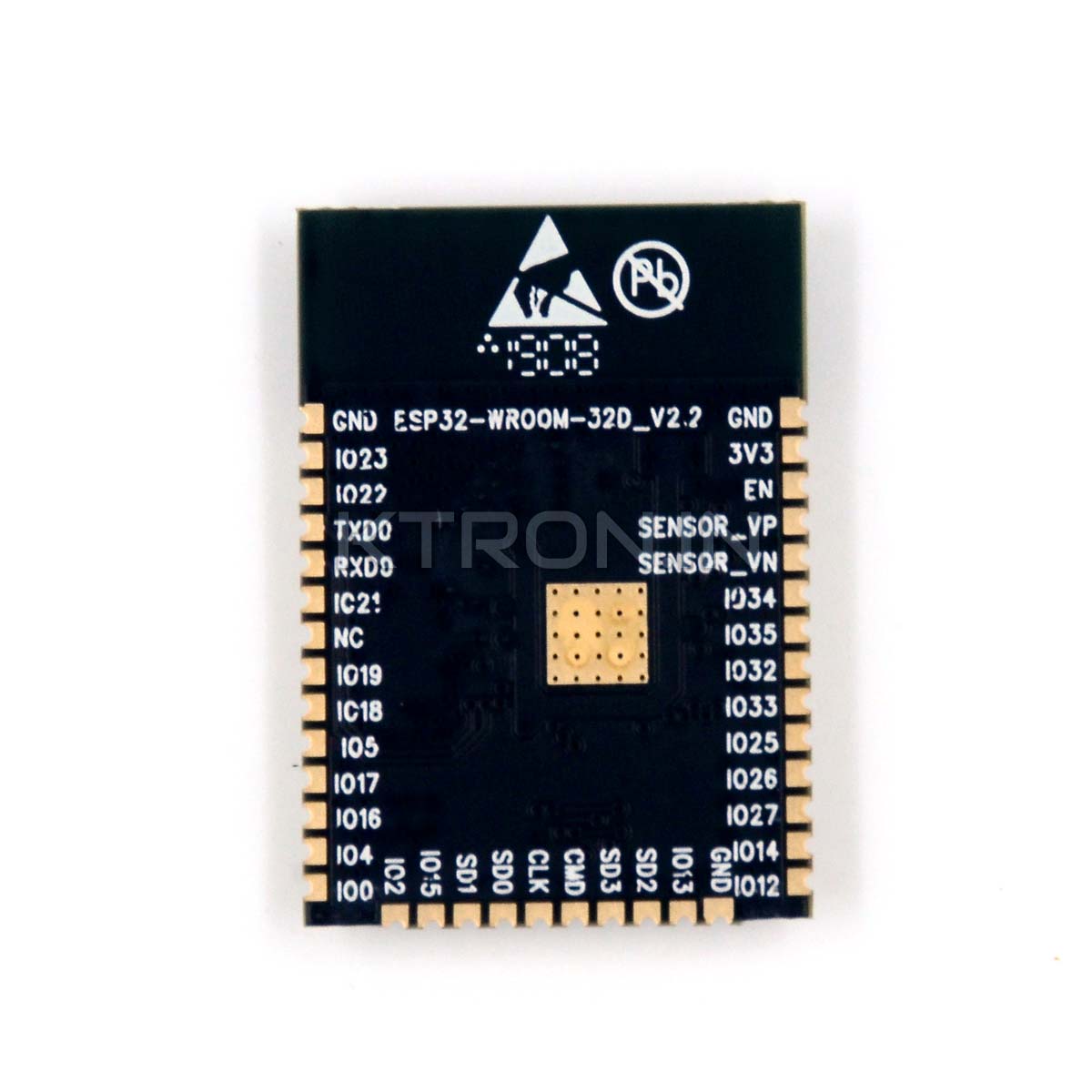

ESP32-WROOM-32D Wifi + BT + BLE Module

318.60 (Incl. of GST 18%)
GST Credit of 48.60available.
Know More

Out of stock

  • Wifi Protocols: 802.11 b/g/n
  • Wi-Fi+BT+BLE MCU Module
  • On Chip Hall Sensor
  • Integrated Cyrstal of 40 Mhz
  • Integrated SPI Flash of 4 MB
  • Recommended Voltage: 3.3V
  • Operating Current: Average 80 mA
SKU: KSTM0128 Categories: , Tags: , , , ,

Quantity based pricing table

MinMaxUnit Price
19318.60
1024286.74
2549267.62
5099254.88
100199245.32
200399235.76
400649232.58
650And more.229.39

318.60 (Incl. of GST 18%)
GST Credit of 48.60available.
Know More

Description

ESP32-WROOM-32D is a powerful, generic WiFi + BT + BLE MCU modules that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.

Just like ESP32-WROOM-32U, this module also has ESP32-D0WD chip at its core. This chip has 2 CPU cores which can be individually controlled. The clock frequency is adjustable from 80 Mhz to 240 Mhz. The user can also power off the CPU and instead make use of the low power co-processor to constantly monitor the peripheral changes or crossing of thresholds. This chip integrates a rich set of peripherals, from capacitive touch sensor, Hall sensors, SD Card interface, ethernet, high speed SPI, UART, I2S and I2C.

The integration of Bluetooth, Bluetooth LE and WiFi ensures that a wide range of applications can be targeted, and that the module is all-around. Using WiFi allows a large physical range and direct connection to the Internet through a WiFi router, while using Bluetooth allows the user to conveniently connect to the phone or broadcast low energy beacons for its detection. The sleep current of the ESP32 chip is less than 5 µA. So, its suitable for battery powered and wearable electronics applications. The module supports a data rate of up to 150 Mbps, and 20 dBm output power at the antenna to ensure the widest physical range. As such the module does offer industry-leading specifications and the best performance for electronic integration, range, power consumption, and connectivity.

Difference in ESP32 Series:

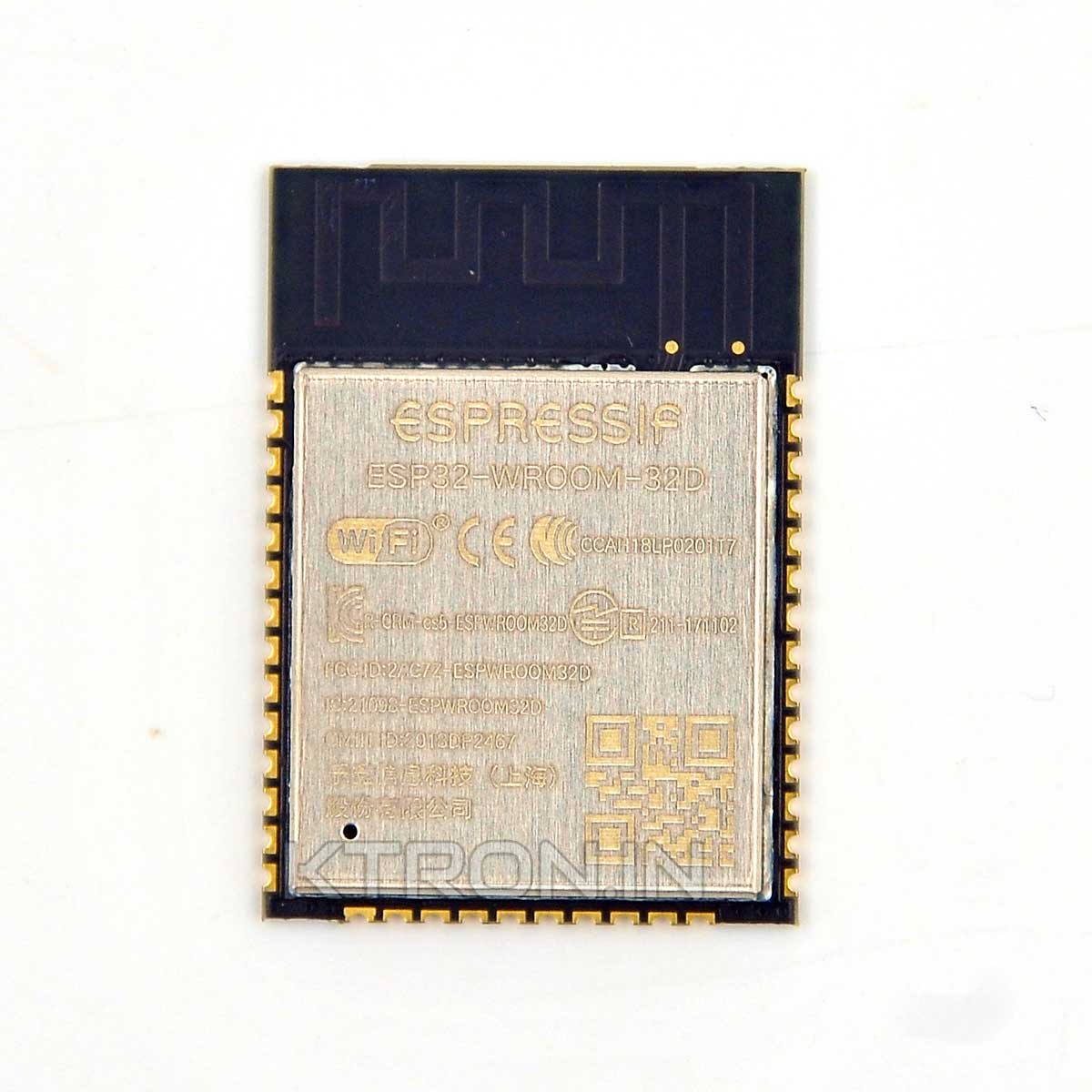

The ESP32-WROOM-32D has a PCB Antenna, where as ESP32-WROOM-32U has a UFL connector for connection of antenna.

When compared to ESP32-WROOM-32, ESP32-WROOM-32D / ESP32-WROOM-32U has better RF Performance, and uses a smaller package of the MCU.

Difference Between ESP32-WROOM-32 Series And ESP8266 Series:

As compared to ESP8266 12E/12F modules, the ESP32 Series modules have Bluetooth, more pins, and higher computing capacity. And, it also has same level power consumption. So, it makes ESP32 series devices a good choice for Iot, and automation related devices.

Specifications

  • WiFi Protocols: 802.11 b/g/n
  • Frequency: 2.4 Ghz ~ 2.5 Ghz
  • Bluetooth Protocols: BLE v4.2 BR/EDR and BLE specification
  • UFL Connector for Antenna
  • On Chip Hall Sensor
  • Integrated Crystal of 40 Mhz
  • Integrated SPI Flash of 4 MB
  • Recommended Voltage: 3.3 V
  • Operating Current: Average 80 mA
  • Minimum Current Delivered by Power Supply: 500 mA
  • Brand: ESPRESSIF
  • RoHS / REACH Certified

Specification

Additional information

Weight4.5 g
Dimensions18 × 25.5 × 3.1 cm
