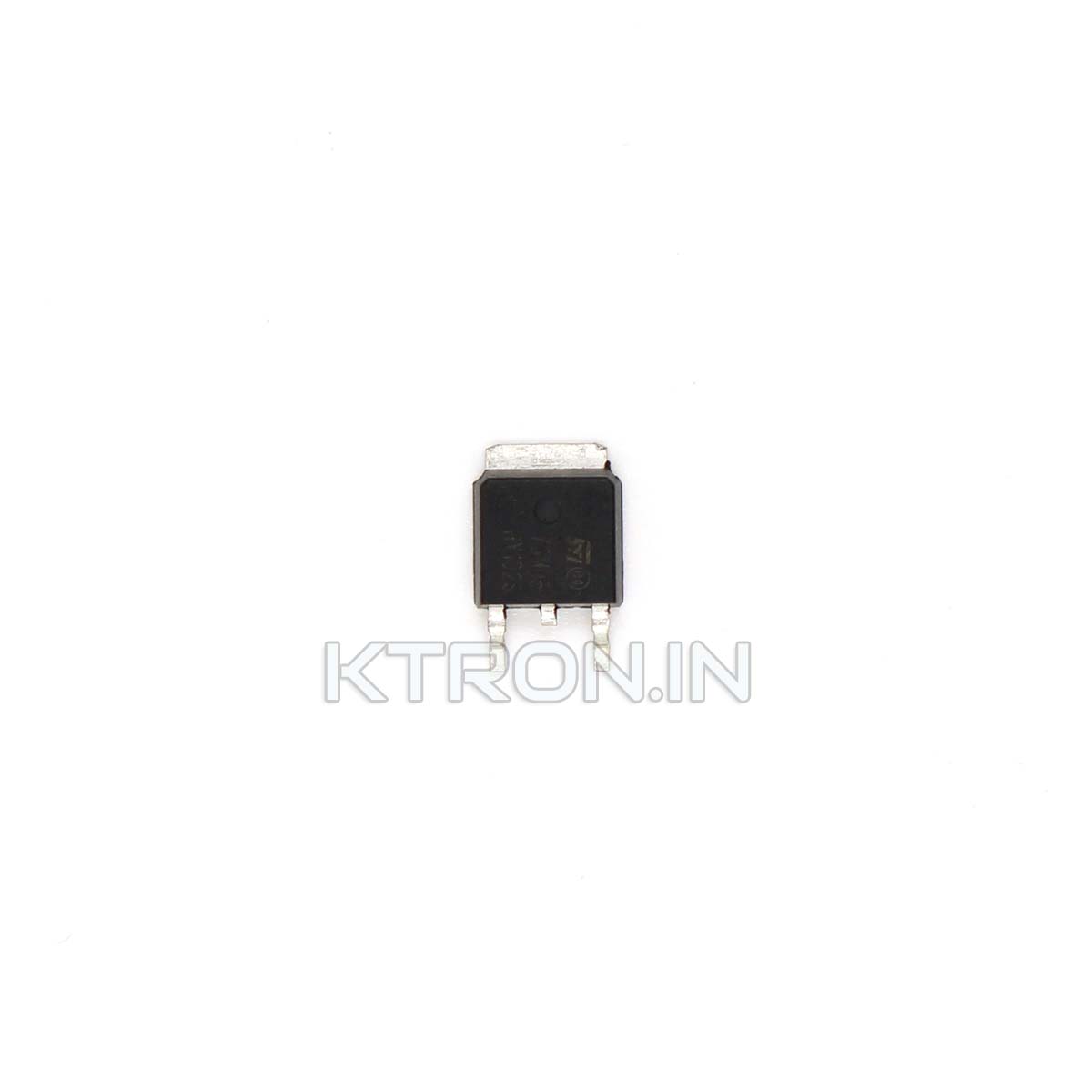

78M05 Voltage Regulator IC – 5V Fixed Linear Regulator – TO-252

The 78M05 Voltage Regulator IC is fixed voltage monolithic integrated circuit voltage regulator and is designed for a wide range of applications. This regulator employ internal current limiting, thermal-shutdown and safe-area compensation, making them essentially indestructible. It can drive up to 0.5 A of output current.

Specifications

• IC Package: TO-252 SMD DPAK
• Type: Fixed Voltage Regulator
• Fixed output voltage: 5V
• Output current in excess of 0.5A
• Maximum DC input voltage: 35V, Dropout voltage: 2V
• Suitable for CMOS, TTL and the other digital IC’s power supply.
• Internal short Circuit Current Limiting
• Internal Thermal Overload Protection
