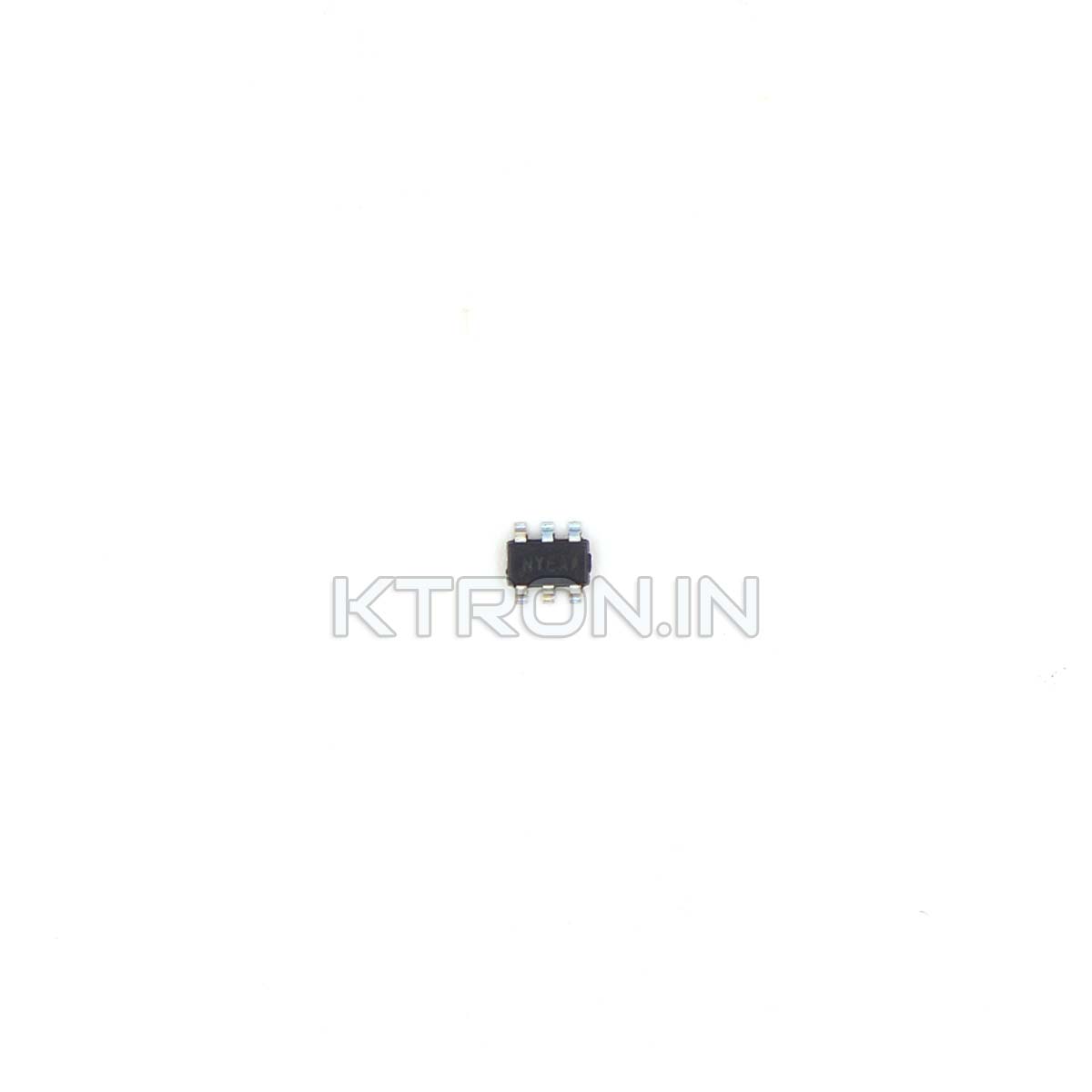

SY8105ADC Step-Down Regulator IC – TSOT-23-6 – Silergy
₹26.50 (Incl. of GST 18%)
GST Credit of ₹4.04available.
Know More
- Output Current: Up to 5A
- Input Voltage Range: 4.5V – 18V
- Switching Frequency: 500 kHz for low ripple and small external components
- Internal Switch RDS(ON): Top = 40mΩ, Bottom = 26mΩ
- Instant PWM Architecture: Fast transient response for high step-down ratios
- Internal Soft-Start: Limits inrush current
- Cycle-by-Cycle Peak Current Limitation
- Reference Voltage Accuracy: 0.6V ±1.5%
- Package Type: TSOT-23-6
- Manufacturer: Silergy
Description
The SY8105ADC Step-Down Regulator IC is a high-efficiency synchronous step-down DC-DC converter capable of delivering up to 5A output current. It operates over a wide input voltage range of 4.5V to 18V and integrates high-performance internal switches with very low RDS(ON) to minimize conduction losses.
With a 500 kHz switching frequency, the SY8105ADC allows low output voltage ripple and small external inductor and capacitor sizes. Its instant PWM architecture ensures fast transient response for high step-down applications. The IC also features internal soft-start, cycle-by-cycle peak current limitation, and a precise 1.5% 0.6V reference, making it ideal for portable TVs, set-top boxes, routers, DSL modems, and LCD TVs.
Applications:
- Set-top boxes
- Portable TVs
- Access point routers
- DSL modems
- LCD TVs
- General high-current step-down voltage regulation applications
Specification
Additional information
| Weight | 0.06 g |
|---|
