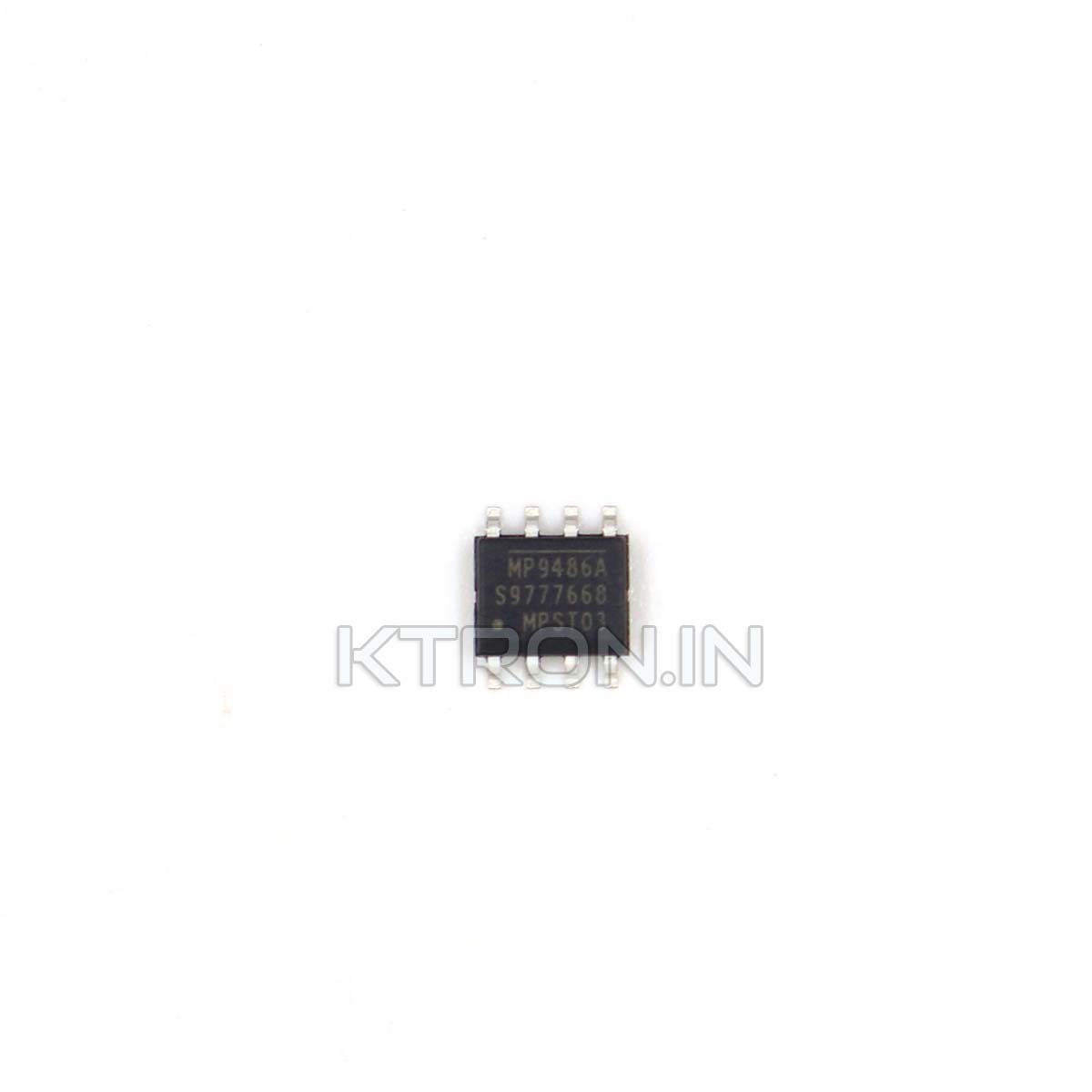

MP9486AGN-Z – 100V Buck Switching Regulator IC – 1A – SOIC-8
₹121.00 (Incl. of GST 18%)
GST Credit of ₹18.46available.
Know More
- Wide input voltage range: 4.5V to 100V
- Output voltage: Adjustable from 0.8 V to VIN
- Continuous output current: Up to 1A
- Typical peak current limit: 3.5 A
- Switching frequency: 1 MHz
- Integrated high-side and low-side MOSFETs
- High efficiency: Up to 95% (typical)
- Package Type: SOIC-8
- Manufacturer: Monolithic Power Systems (MPS)
Description
The MP9486AGN-Z is a high-voltage step-down (buck) switching regulator from Monolithic Power Systems capable of operating from a wide 4.5 V to 100 V input range. It integrates a high-side high-voltage power MOSFET with a typical 3.5 A peak switching current limit and delivers up to 1 A continuous output current.
The device uses hysteretic voltage-mode control, enabling very fast transient response and eliminating the need for loop compensation. With low quiescent current (170 µA) and comprehensive protection features, it is well suited for automotive, industrial, solar, and LED driver applications
Features:
- Integrated high-side and low-side MOSFETs
- Wide input voltage operating range
- High efficiency across load conditions
- Current-mode control architecture
- Fixed switching frequency for predictable EMI
- Over-current protection (OCP)
- Thermal shutdown protection
- Under-voltage lockout (UVLO)
- Compact SOIC-8 surface-mount package
Specification
Additional information
| Weight | 0.16 g |
|---|
