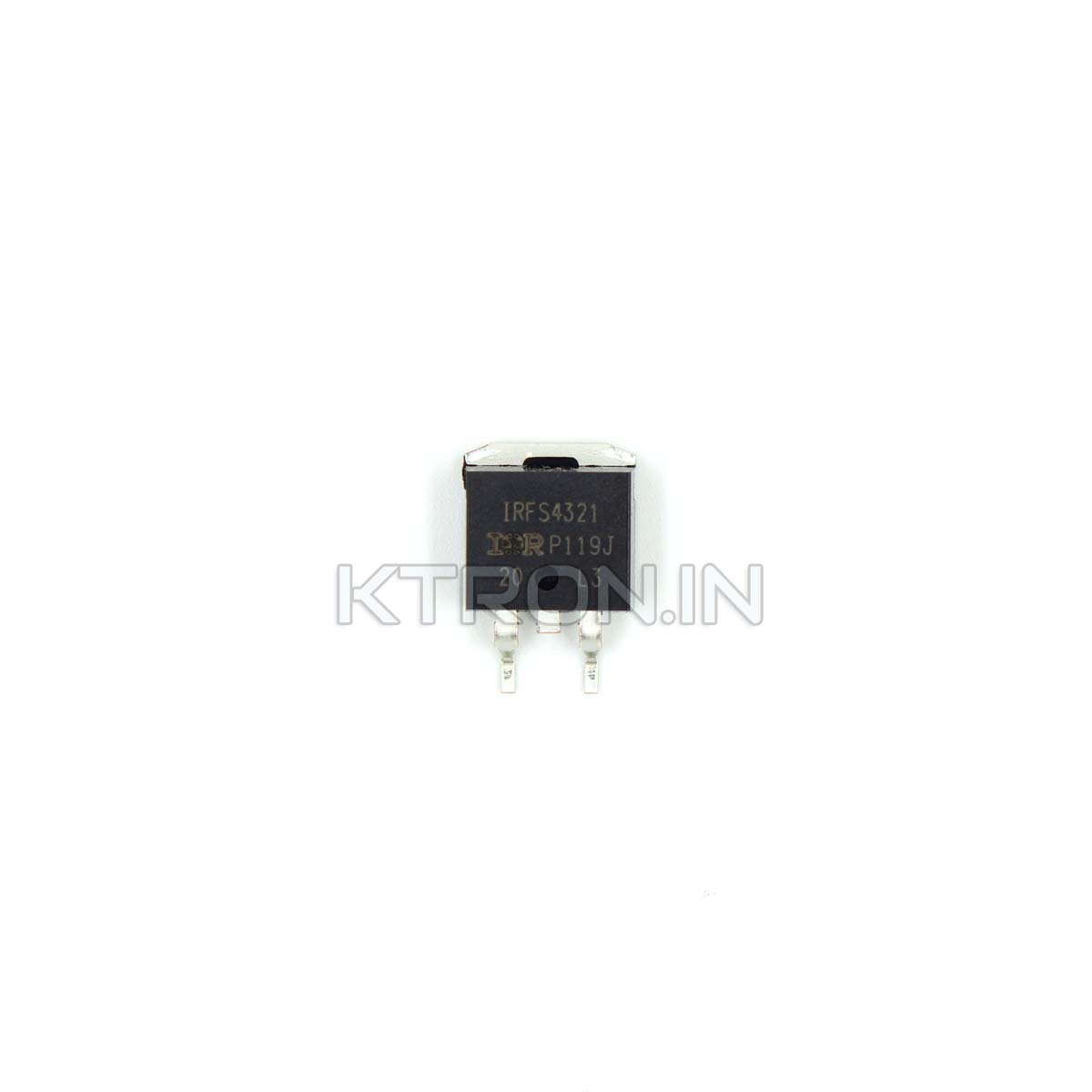

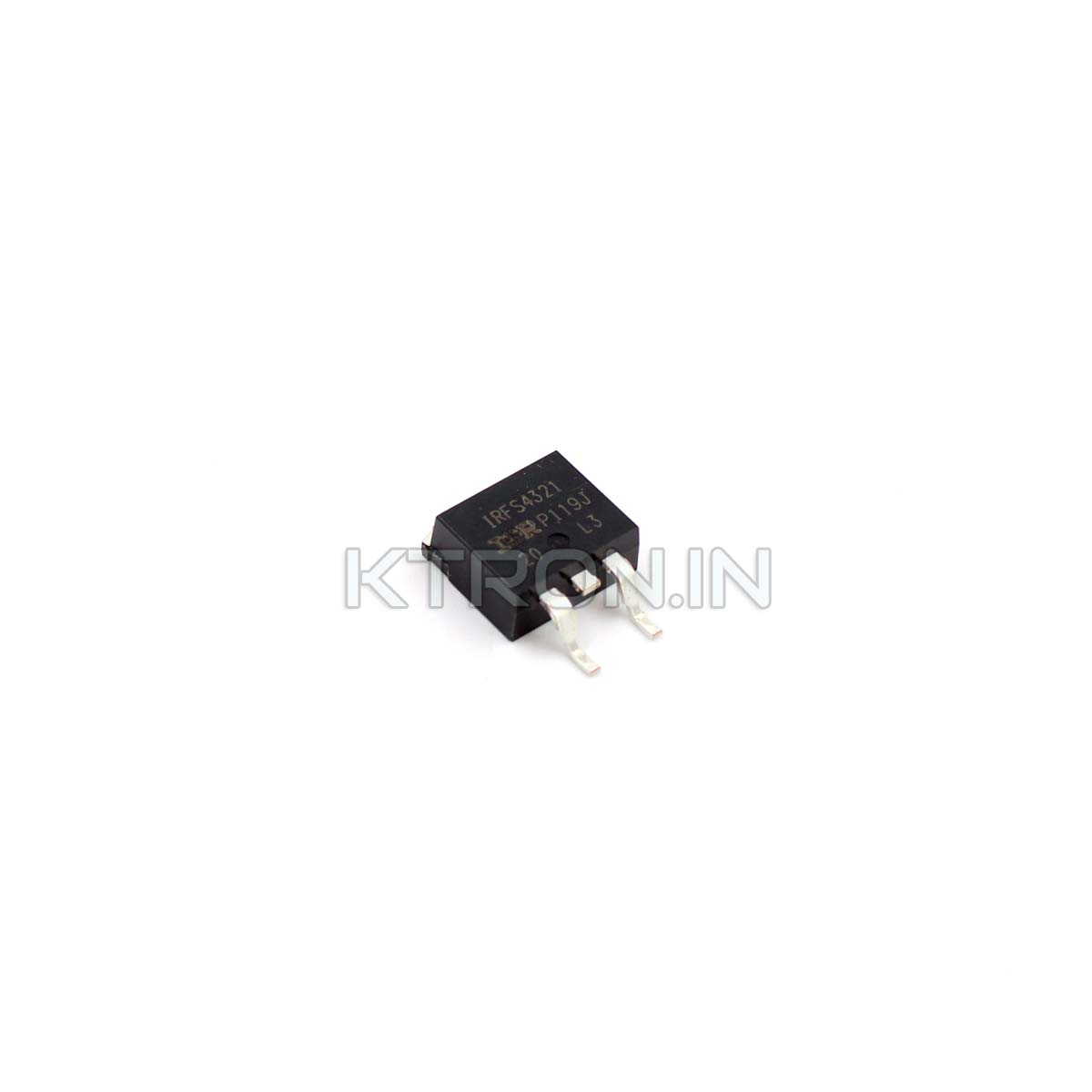

IRFS4321TRLPBF Mosfet – N Channel – 150V – 85A – D2PAK
₹260.00 (Incl. of GST 18%)
GST Credit of ₹39.66available.
Know More
- Continuous Drain Current, VGS @ 10V: 85A
- Drain-to-Source Breakdown Voltage: 150V.
- Gate Threshold Voltage: 3V-5V
- Input Capacitance: 4460pF
- Maximum Power Dissipation: 350W
Description
IRFS4321TRLPBF Mosfet is a Third generation Power MOSFETs, and provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The D2PAK package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 350 W. The low thermal resistance and low package cost of the D2PAK contribute to its wide acceptance throughout the industry. it provide High Efficiency Synchronous Rectification in SMPS.
Applications:
- Motion Control Applications
- High Efficiency Synchronous Rectification in SMPS
- Uninterruptible Power Supply
- Hard Switched and High Frequency Circuits
Specification
Additional information
| Weight | 2.35 g |
|---|
