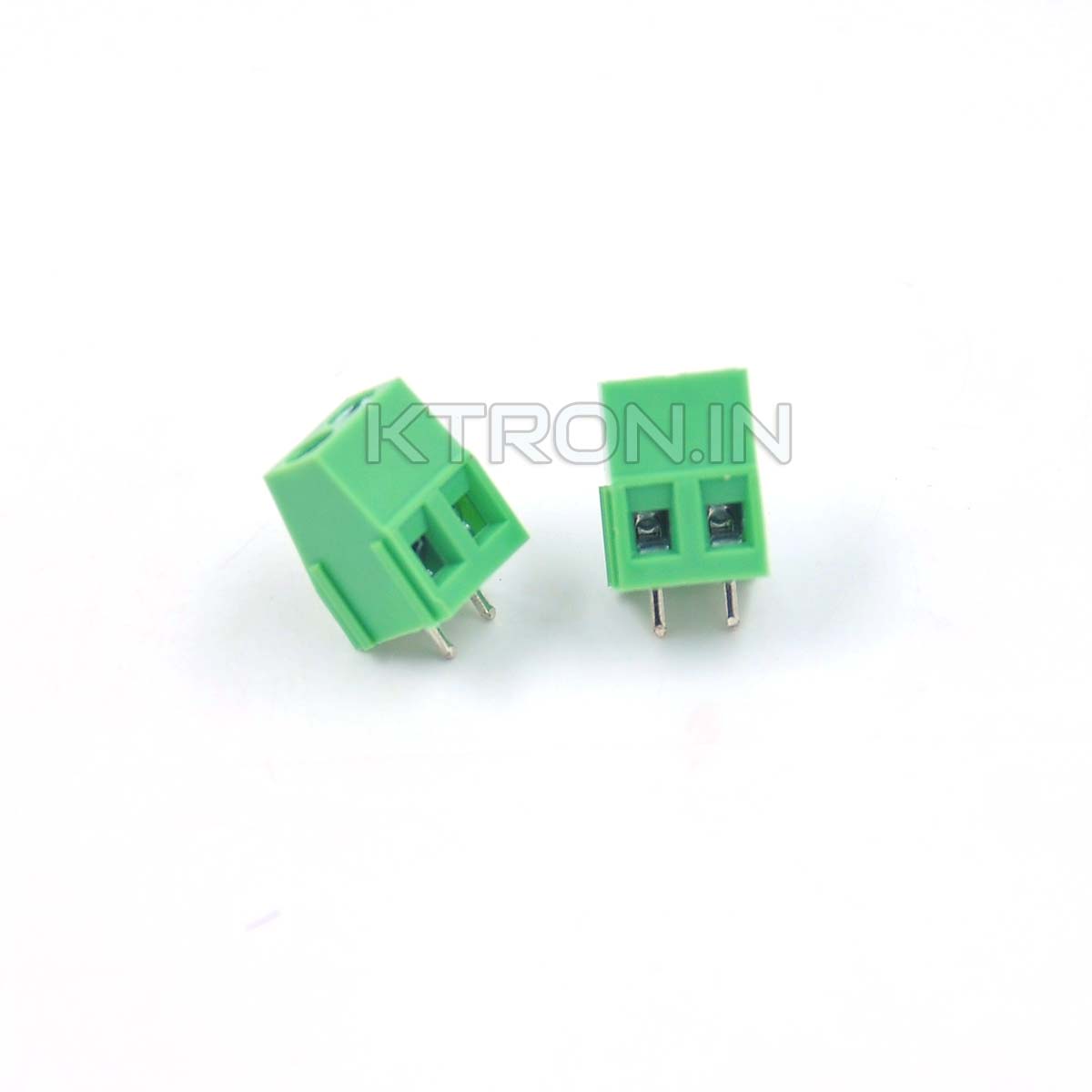

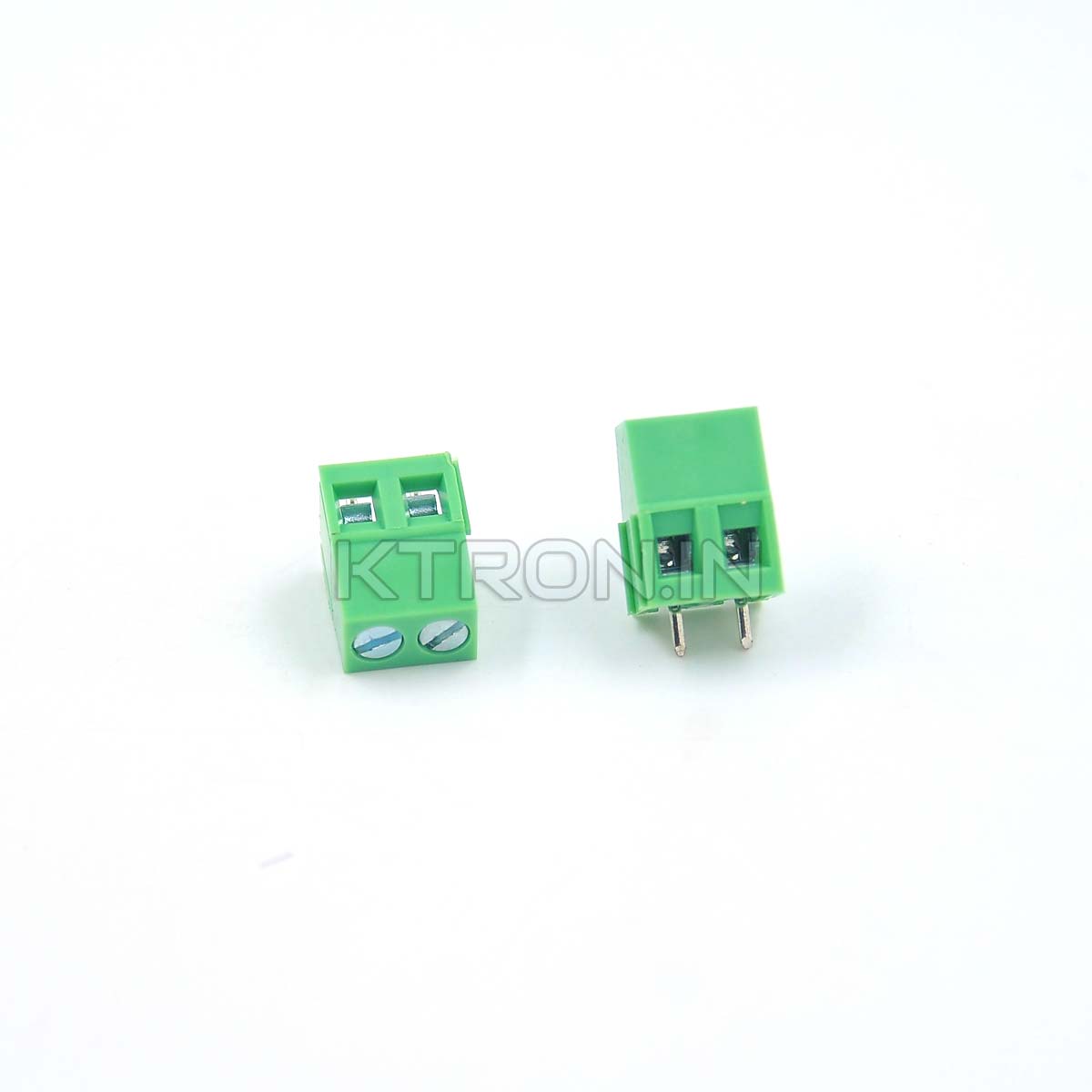

Xinya XY128 2 pin Screw Terminal – 10A – 5mm Pitch

5.51 (Excl. of GST 18%)
GST Credit of 0.99available.
Know More

Out of stock

  • Xinya XY128 2 Pin Screw Terminal
  • Pitch: 5mm
  • Current Rating: 10A
  • Max Withstand Voltage: 2000VAC / 60s
  • Supported Wire Range: 24-12 AWG or up to 2.5mm²
SKU: KSTC0509 Category: Tags: , , , , ,

Quantity based pricing table

MinMaxUnit Price
195.51
10194.96
20494.63
50994.41
1001994.24
2004994.08
500And more.3.97

5.51 (Excl. of GST 18%)
GST Credit of 0.99available.
Know More

Description

Its is a Xinya XY128 2 pin Screw Terminal. The XY128 Series Screw Terminal have a pitch of 5mm, and current rating of 10A. This screw terminals accepts wires of 24-12AWG or up to 2.5mm². All the screw terminals have a locking mechanism, such that any number of 2 or 3 pin Screw Terminals can be joined together.

Specifications

  • Brand: Xinya
  • Type: XY128
  • Pitch: 5.00mm
  • Current Rating: 10A @ 250V
  • Housing: PA66 (UL 94V-0)
  • Screw: Steel
  • Pin Header: Brass (Tin Plated)
  • Operating temperature: -40°C to +105°C

Soldering

  • Wave Soldering: 260°C/5s
  • Hand Soldering: Soldering Iron 350°C/10s

Xinya XY128 2 Pin Screw Terminal Footprint

XY128VA-5.0 XY128VA-5.08

Specification

Additional information

Weight3.6 g
