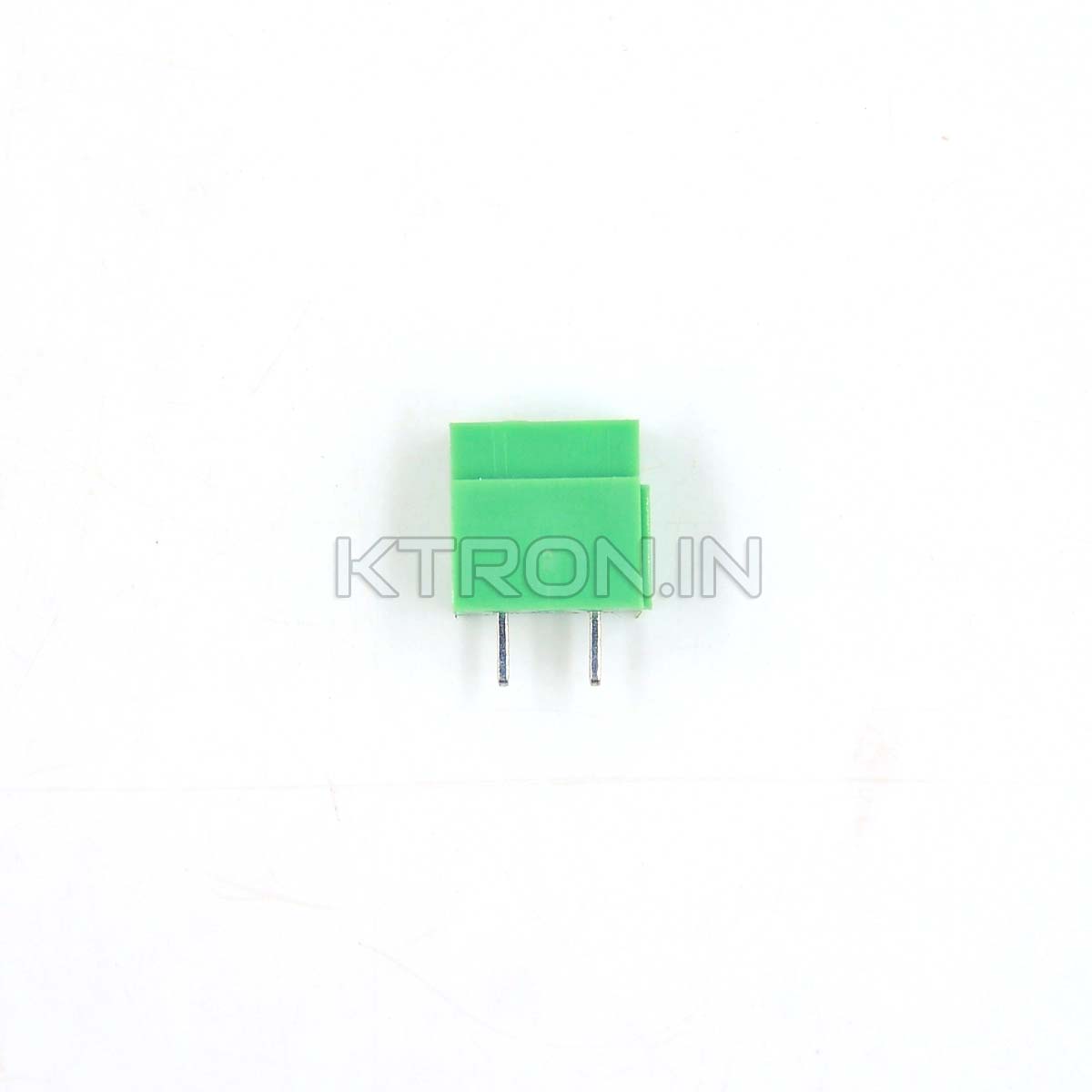

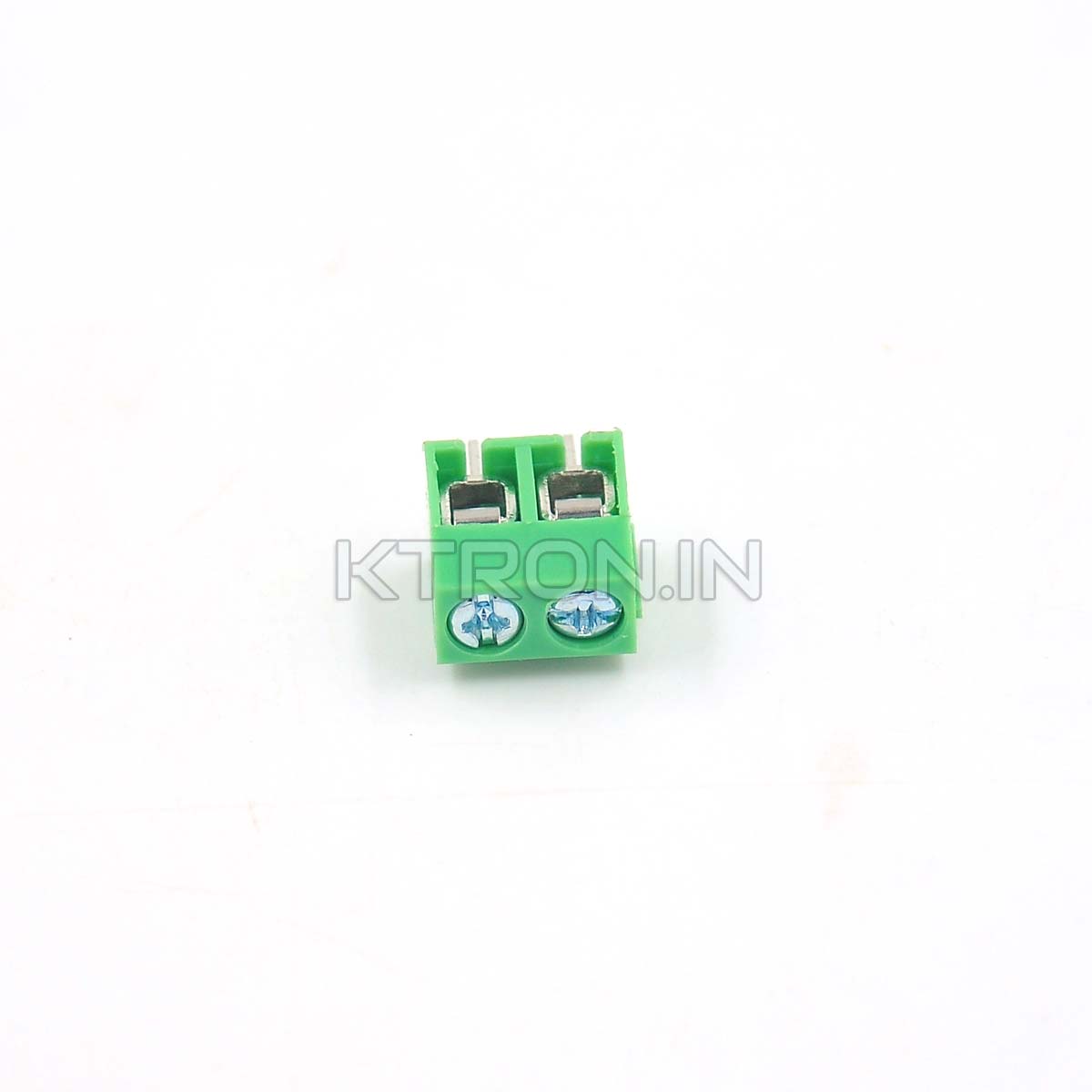

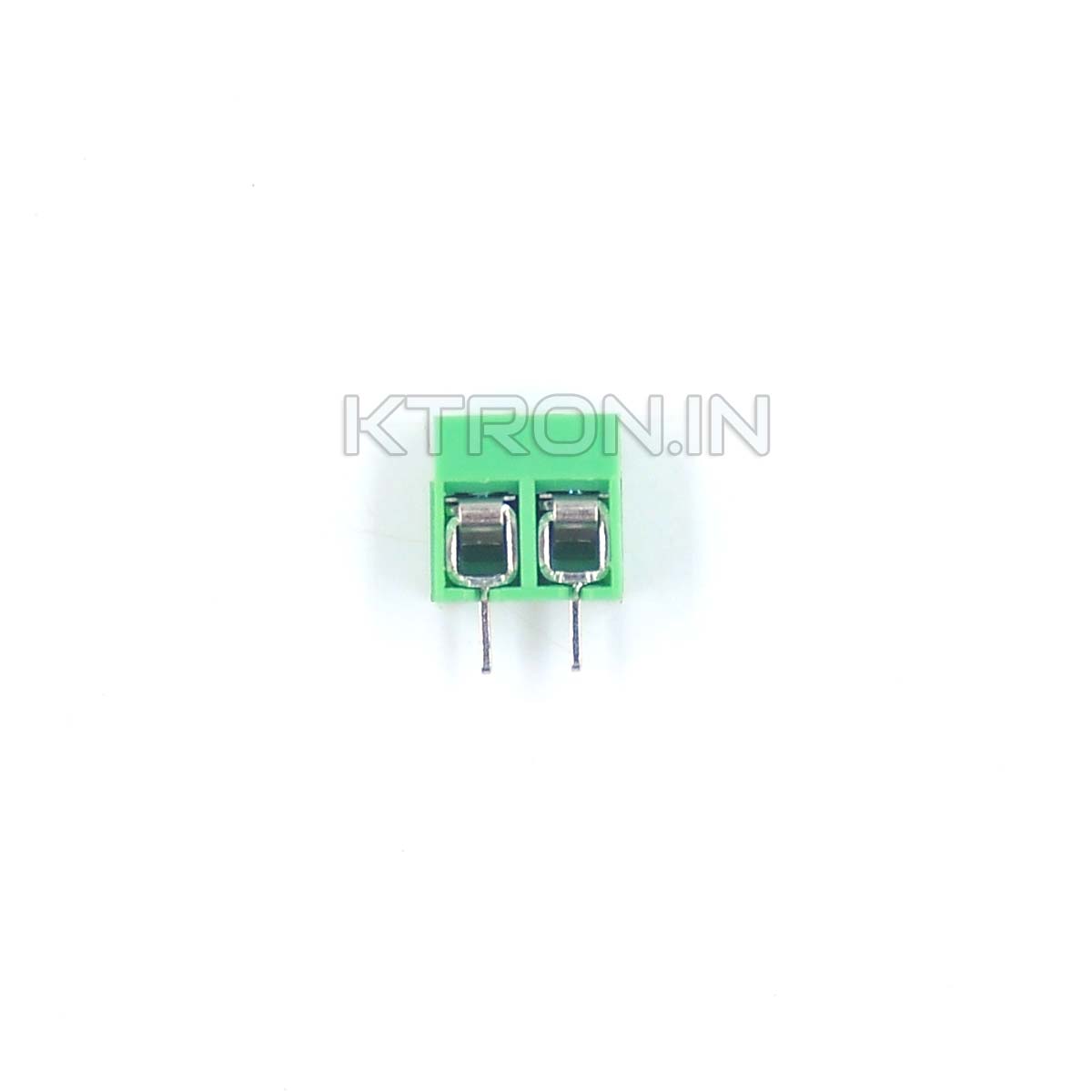

Xinya XY126 2 Pin Screw Terminal – 6A – 5mm Pitch

6.00 (Incl. of GST 18%)
GST Credit of 0.92available.
Know More

In stock

  • Xinya XY126 2 Pin Screw Terminal
  • 5mm Pitch
  • Max Current Capacity: 6A
  • Accepts Wire of 26-14 AWG or up to 2.5mm2
  • AC withstand Voltage: 2000V / 60s
SKU: KSTC0515 Category: Tags: , , , , ,

Quantity based pricing table

MinMaxUnit Price
196.00
10195.46
20495.10
50994.80
1001994.50
2004994.32
500And more.4.20

6.00 (Incl. of GST 18%)
GST Credit of 0.92available.
Know More

All orders will be dispatched either same day or by next working day.

Description

This is a Xinya XY126 2 Pin Screw Terminal. The Xinya XY126 Series screw terminals have current capacity of upto 6A. This screw terminals are widely used in all kinds of electronics devices for connecting the wires. They accept wires of 26-14 AWG or 2.5mm2. The maximum rated voltage is 300V @ 10A.

This Screw Terminal has locking mechanism on sides of it, such that you can slide another XY126 Screw Terminal in it, to make it a 4 pin or 5 pin Screw terminal, which can be further multiplied.

Specifications

  • Brand: Xinya
  • Type: XY126
  • Pitch: 5.00mm
  • Can be used with Wire of 26-14 AWG or up to 2.5mm2
  • Operating Temperature: -40℃ to +105℃

Usage

  • Wire Stripping Length: 6-7mm
  • Wave Soldering: 260℃ / 5s
  • Hand Soldering: Soldering Iron 350℃  / 10s

Xinya XY126 Screw Terminal Footprint

Xinya XY126 2 pin Screw Terminal

Specification

Additional information

Weight2 g
