NRF24L01+PA+LNA 2.4Ghz Wireless Transceiver Module

154.90 (Incl. of GST 18%)
GST Credit of 23.63available.
Know More

In stock

  • Supply Voltage: 3V to 3.6V
  • Max Output Power: +20 dBm
  • Very low power consumption
  • SMA Antenna for range upto 1000 meters
  • Air Data Rate : 2 MBit / s
SKU: KSTM0202 Category: Tags: , , , , , , ,

Quantity based pricing table

MinMaxUnit Price
19154.90
1019153.35
20And more.151.80

154.90 (Incl. of GST 18%)
GST Credit of 23.63available.
Know More

All orders placed before cut-off time will be dispatched same day.
For B2B orders, contact us on sales@ktron.in
International Shipping Available. Destination Duty and Taxes Payable by Customer.

Description

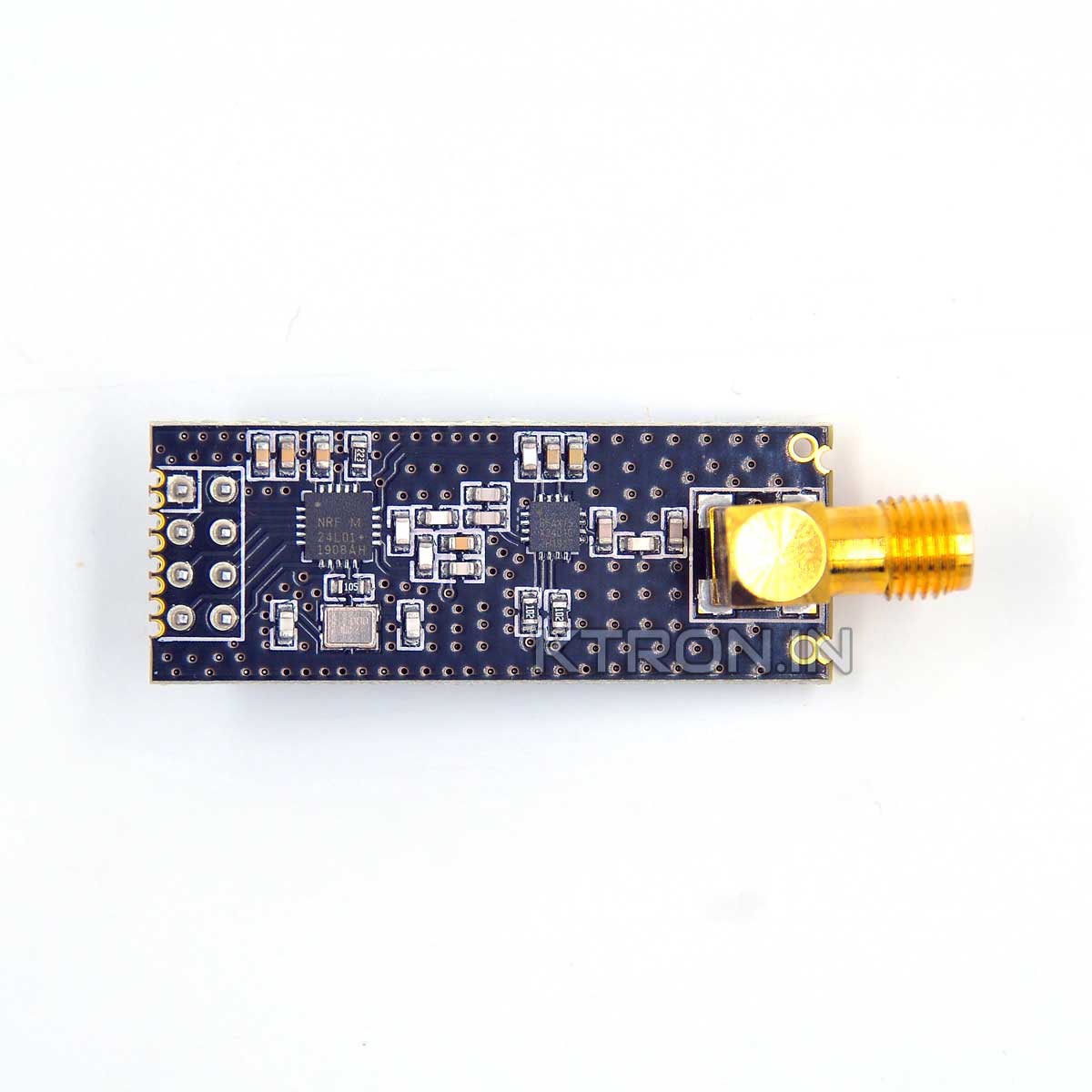

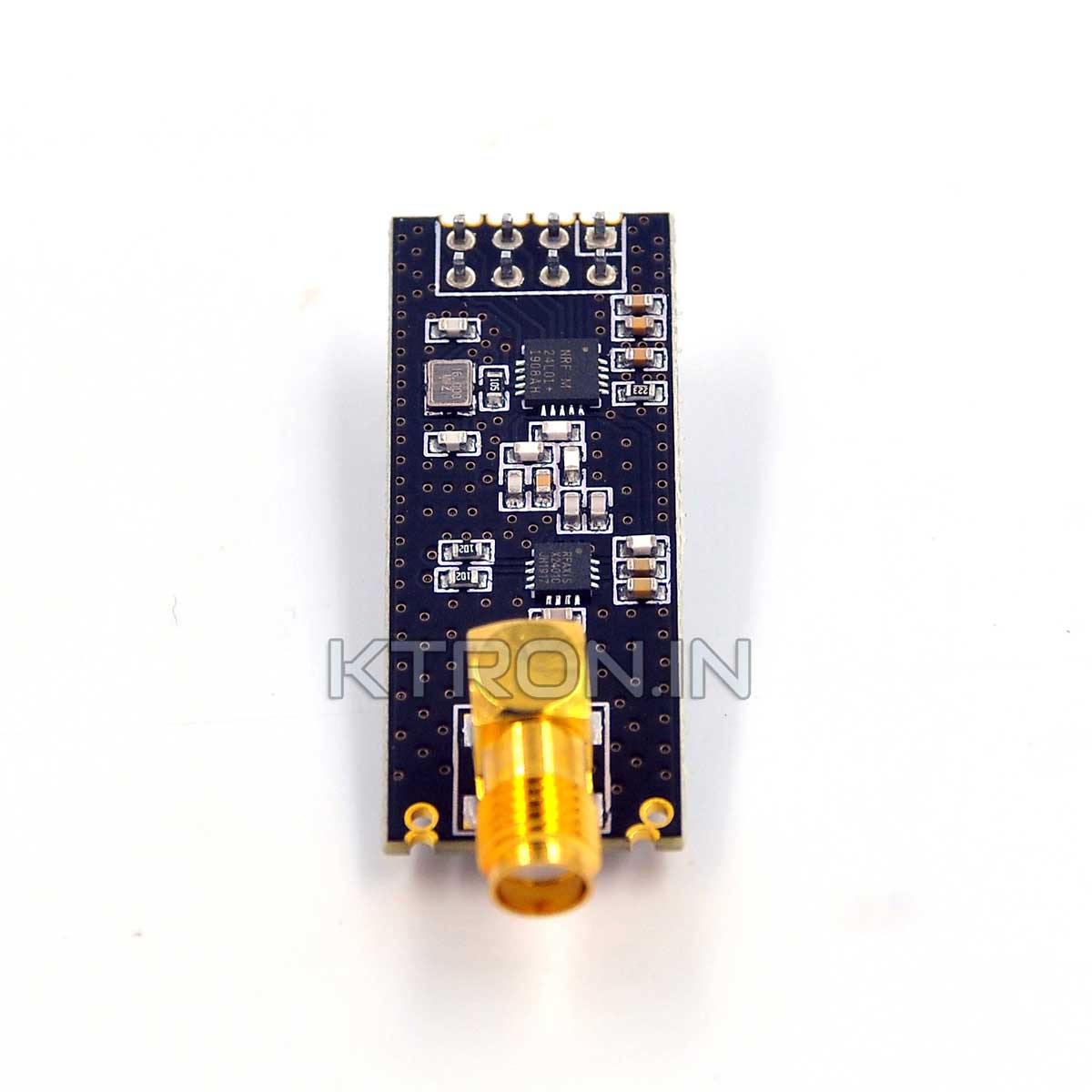

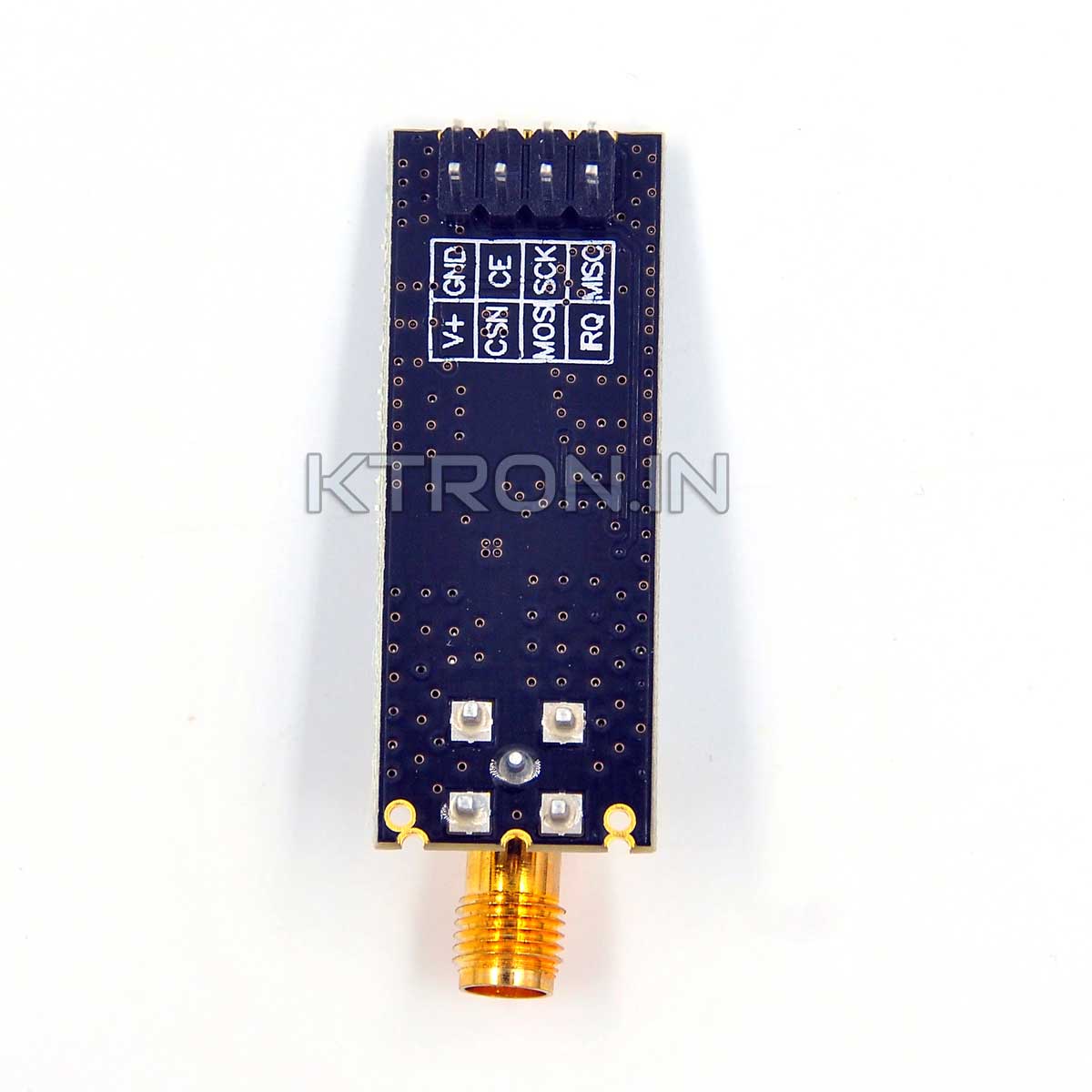

This NRF24L01+PA+LNA Wireless transceiver module is based on 2.4Ghz transceiver NRF24L01+ from Nordic Semiconductors. This board contains a reverse polarized SMA Connector to maximize the RF Range, and there is PA and LNA circuit on board. With the use of external antenna, the range of the device can be very long as compared to a module without this. The antenna is a 2.4 Ghz Antenna with 2 dbi gain. After the use of external antenna, the communication range increases to 800-1000 meters.

The NRF24L01+PA+LNA module is easily attachable to any MCU. This module is designed with power amplifier and SMA Antenna. And that allows it to be used for wireless communication of up to 1000 meters (No Barrier).

  • Supply Voltage: 3 to 3.6 V
  • Max Output Power: +20 dBm
  • Current Consumption in transmit mode: 115 mA
  • Current Consumption in receiver mode: 45 mA
  • Uses 2.4 Ghz ISM Band, globally license free
  • Air Data Rate of 2 Mbit/s can support high quality VoIP
  • SPI Interface for communication with MCU
  • Supports six channel data reception
  • Multi frequency points: 125 Frequency points meet the needs of multi-point communication and frequency hopping

Package Includes:

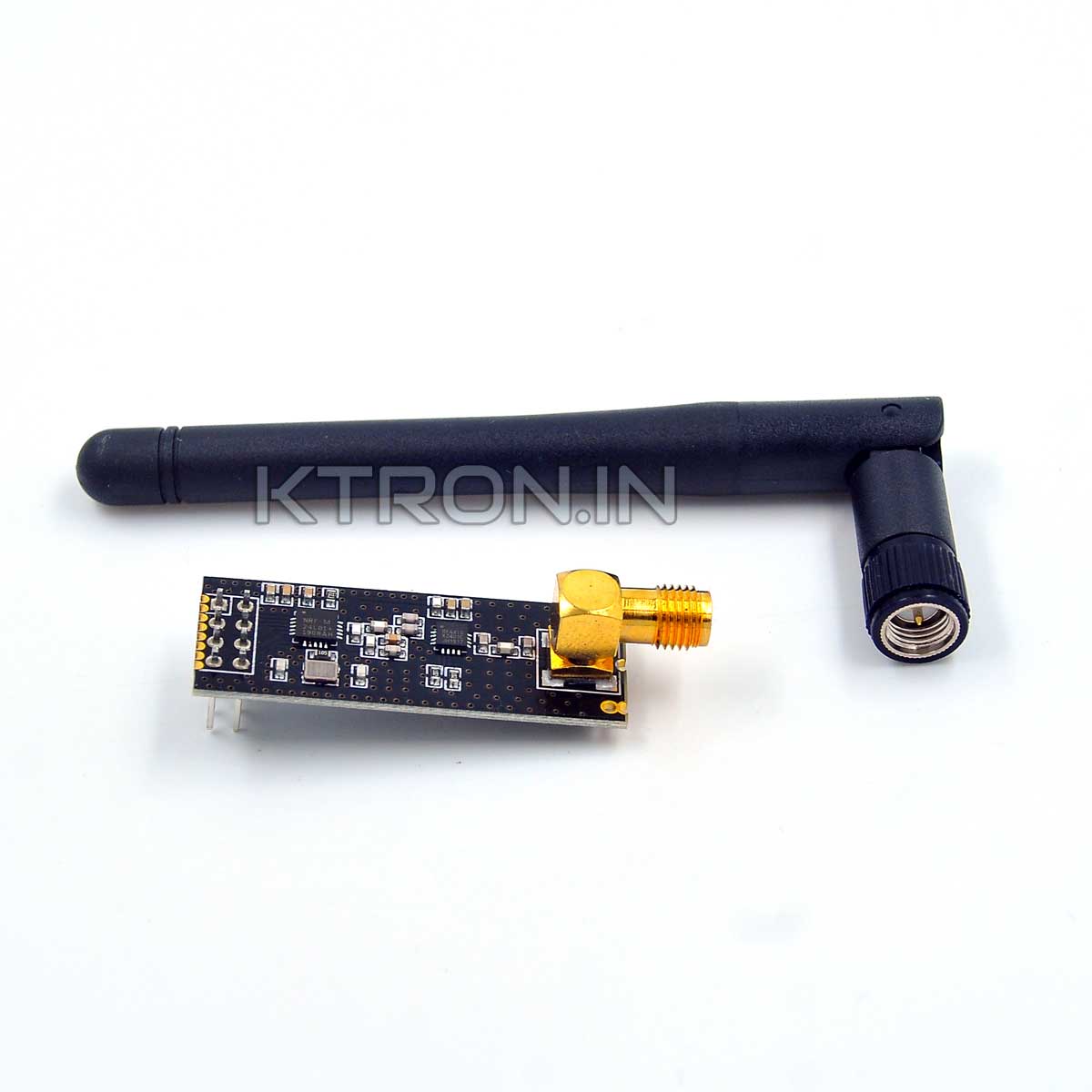

  • 1 x 2.4 Ghz NRF24L01+PA+LNA Module
  • 1 x SMA Antenna

Specification

Additional information

Weight11 g
