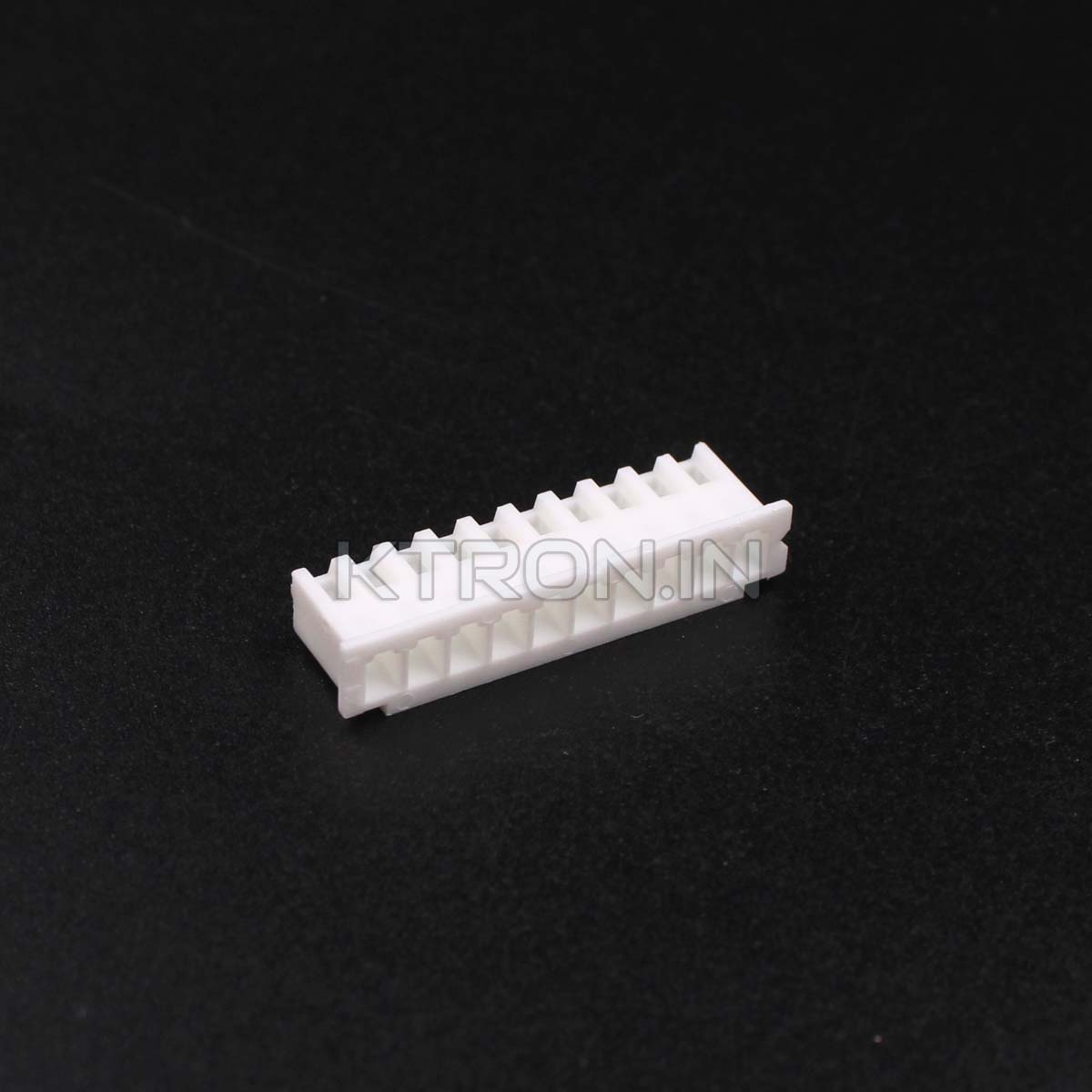

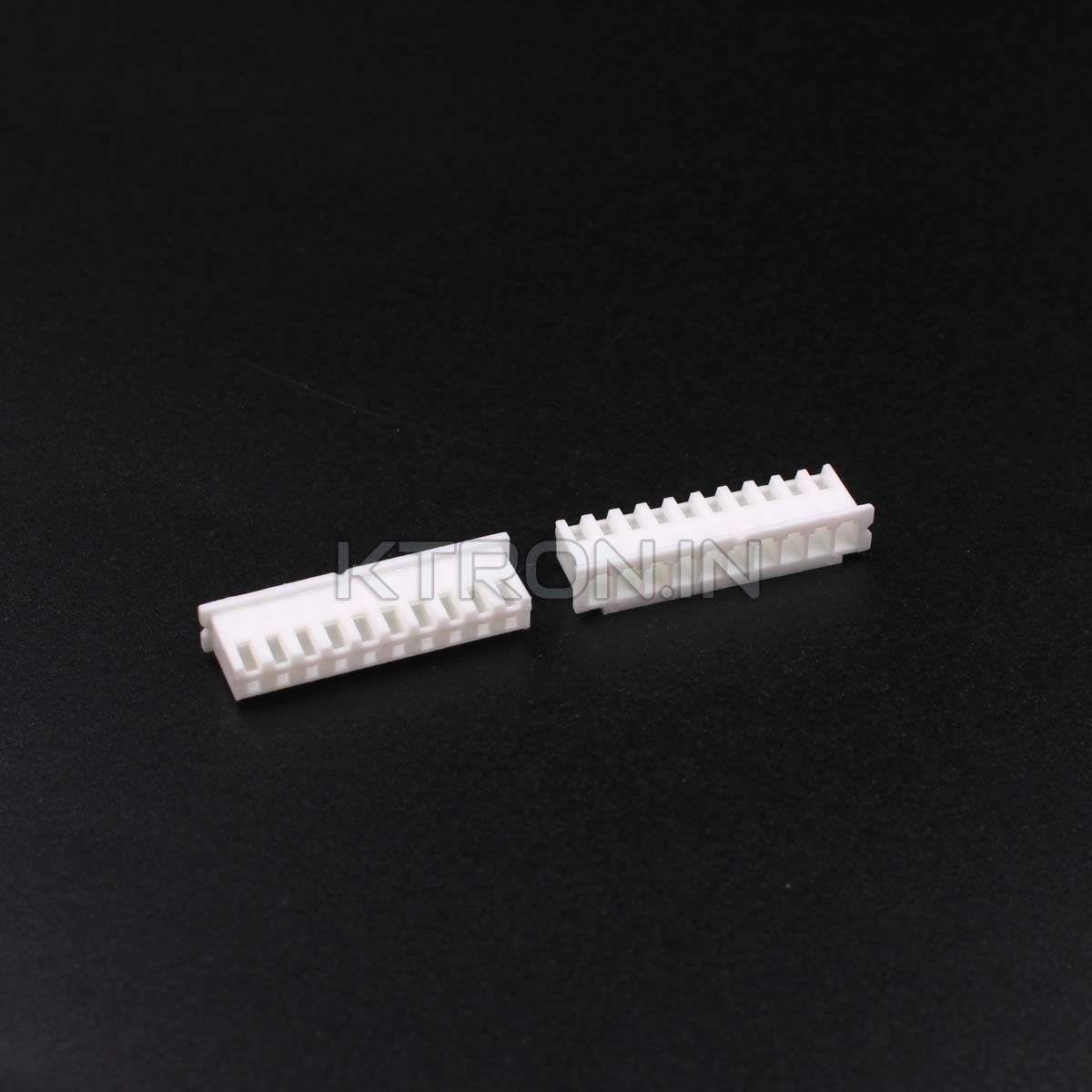

10 Pin JST XH Female Connector 2515 – 2.54mm Pitch
₹1.30 (Incl. of GST 18%)
GST Credit of ₹0.20available.
Know More
- 10 Pin JST XH Series Female Connector
- Current Rating: 3A
- Voltage Rating: 250V
- Pitch: 2.54mm
- Wire Gauge: 7/40
- Contact Type: Female
- To be Bought with JST XH Crimp Terminal
Frequently Bought Together
- This item: 10 Pin JST XH Female Connector 2515 - 2.54mm Pitch(₹1.30 Incl. of GST)
- 10 Pin JST XH Male Connector 2515 - 2.54mm Pitch(₹4.00 Incl. of GST)
- JST XH Crimp Terminal(₹0.71 Incl. of GST)
Description
This is a 10 Pin JST XH Female Connector. It is very small with a mounting height of 11 mm. It is a crimp style connector, and a disconnectable type, and a top entry version. The wires need to be crimped to the terminal, which in turn can be fitted into this female connector, which will be connected to the male connector soldered on any board. It has a good locking mechanism and requires force to remove the female connector from the male connector on board.
SPECIFICATIONS:
- Connector Type: 10 Pin JST-XH Female Connector
- Current Rating: 3A
- Voltage Rating: 250V
- Pitch: 2.54mm
- Wire Gauge: 7/40
- Contact Type: Female
- Mounting Type: Cable Mount
- Operating Temperature: -25°C ~ 85°C
Specification
Additional information
| Weight | 0.7 g |
|---|
