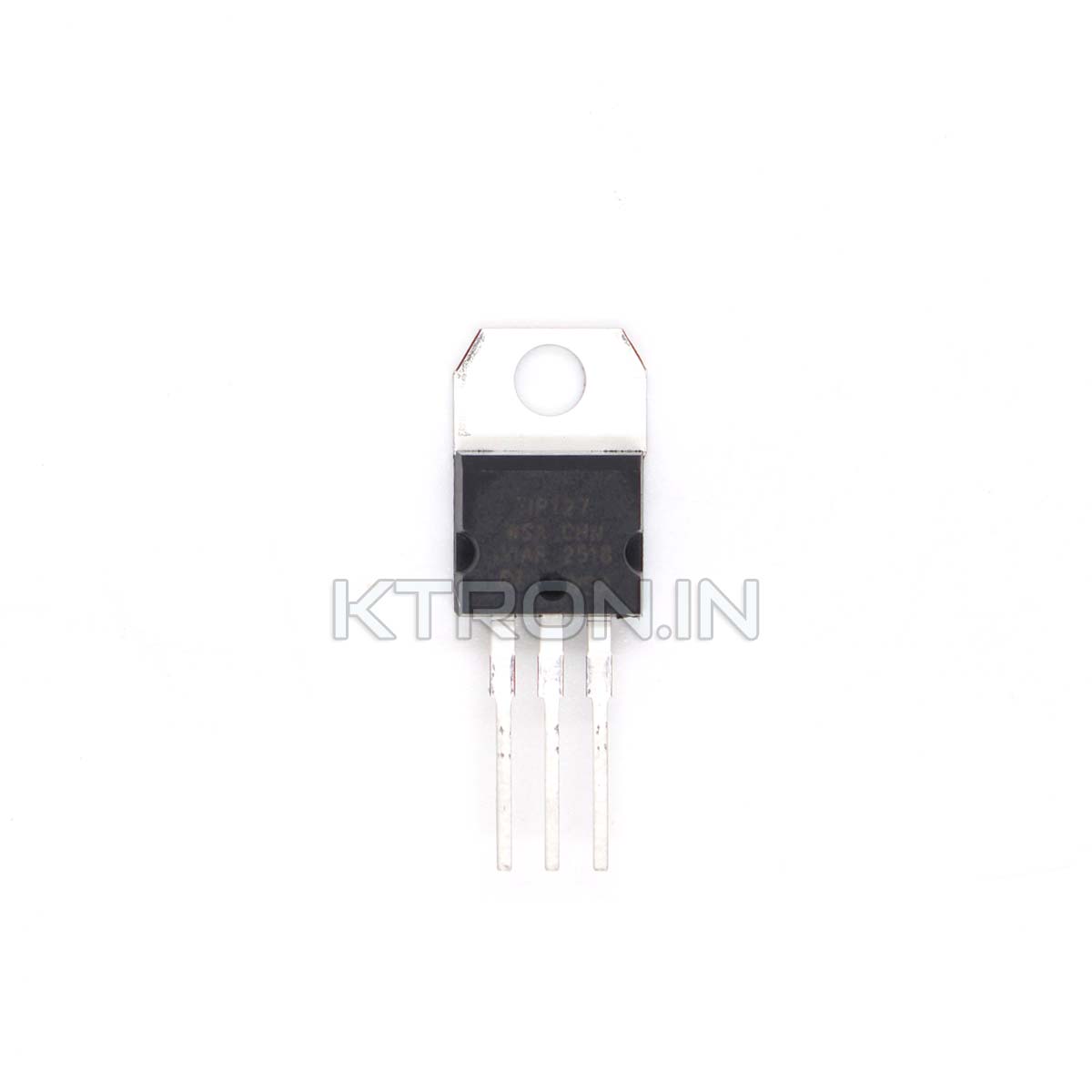

TIP127 PNP Transistor – TO-220 – Darlington Transistor – Generic
₹14.10 (Incl. of GST 18%)
GST Credit of ₹2.15available.
Know More
- Type: PNP Darlington transistor
- Collector-Emitter Voltage (VCEO): -100V
- Continuous Collector Current (IC): -5A
- Base Current (IB): -0.12A
- Power Dissipation (TC ≤ 25°C): 65W
- Thermal Resistance Junction-to-Case (RthJC): 1.92°C/W
- Package: TO-220
Description
The TIP127 PNP Transistor is a PNP Power Darlington transistor designed for linear and switching applications. Manufactured using planar technology with a base island layout and monolithic Darlington configuration, this transistor offers very high current gain and low collector-emitter saturation voltage. It serves as the complementary device to the TIP122 (NPN) transistor, making it suitable for push-pull amplifier or driver circuits.
Features:
- Low collector-emitter saturation voltage
- High current gain due to Darlington configuration
- Planar technology ensures reliability and consistency
- Suitable for linear and switching applications
- High power dissipation capability (up to 65W with proper heatsinking)
Applications:
- Power amplifiers
- Relay and solenoid drivers
- LED and lamp drivers
- Motor control circuits
- General-purpose switching and linear power applications
Specification
Additional information
| Weight | 3 g |
|---|
