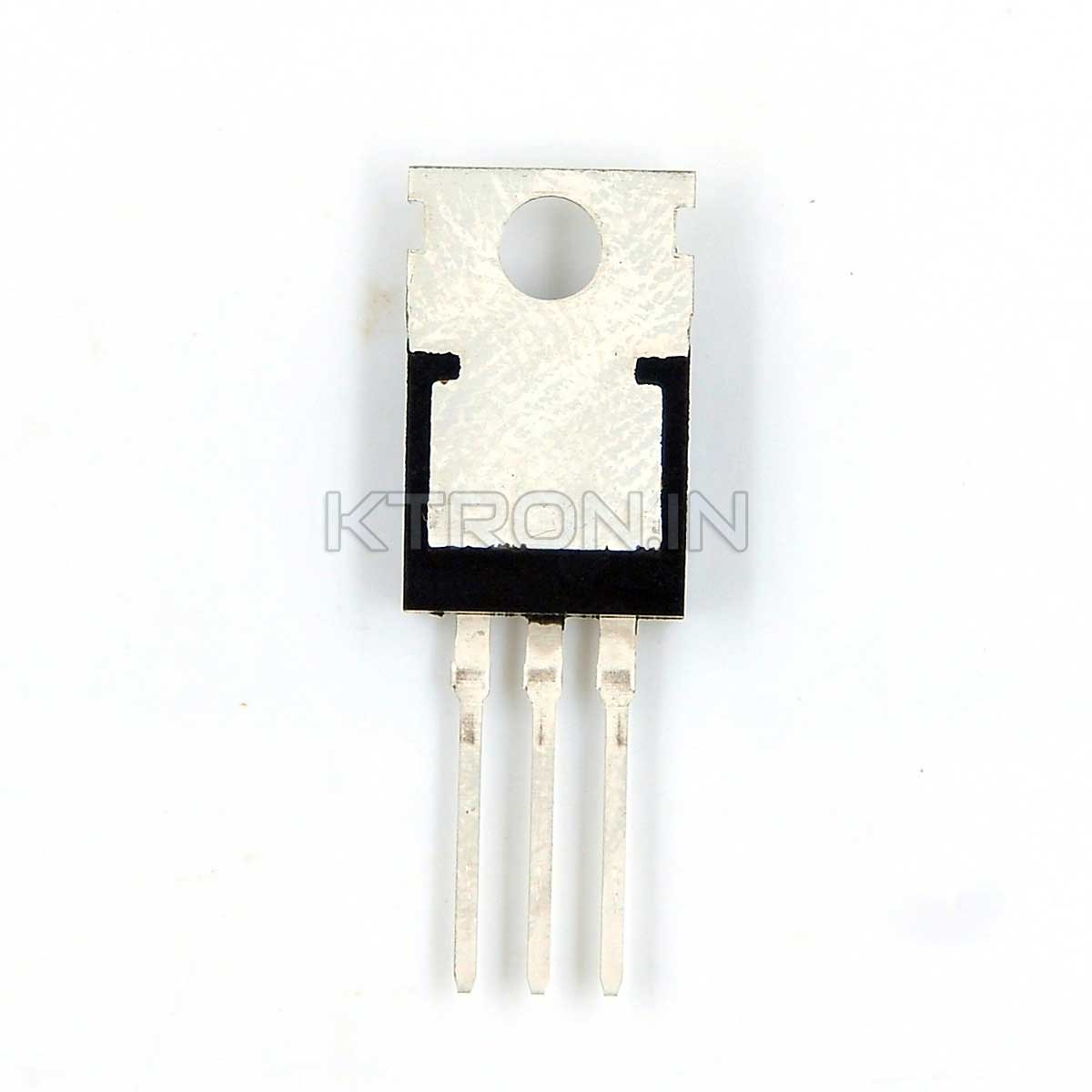

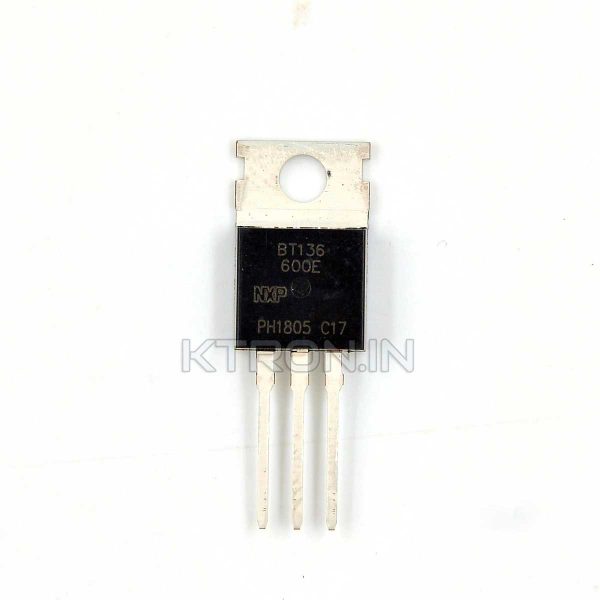

Thyristor BT136 – 600E – TO-220AB

BT136 – 600E is a planar passivated sensitive gate four quadrant triac or thyristor in SOT78 (TO-220AB) package. Its intended for use in general purpose bidirectional switching and phase control applications. So, its manufacturing takes place in such a way, that it directly interfaces with micro controllers, other Logic ICs, and other low power gate trigger circuits. The Thyristor BT136 has gate trigger current of 10 mA. The maximum terminal current is 4 A.

• High Blocking voltage Capability
• Low holding current for low current loads and lowest EMI at commutation
• Planar passivated for voltage ruggedness and reliability
• Triggering in all four quadrants
• Direct triggering from low power drivers and logic ICs
• Sensitive gate
• Repetitive Peak Off State Voltage: 600 V
• RMS On State Current: 4 A
• Non repetitive peak on state current: 25 A
• Gate Trigger Current: 2.5 mA to 25 mA
• Holding Current: 2.2 mA to 15 mA
