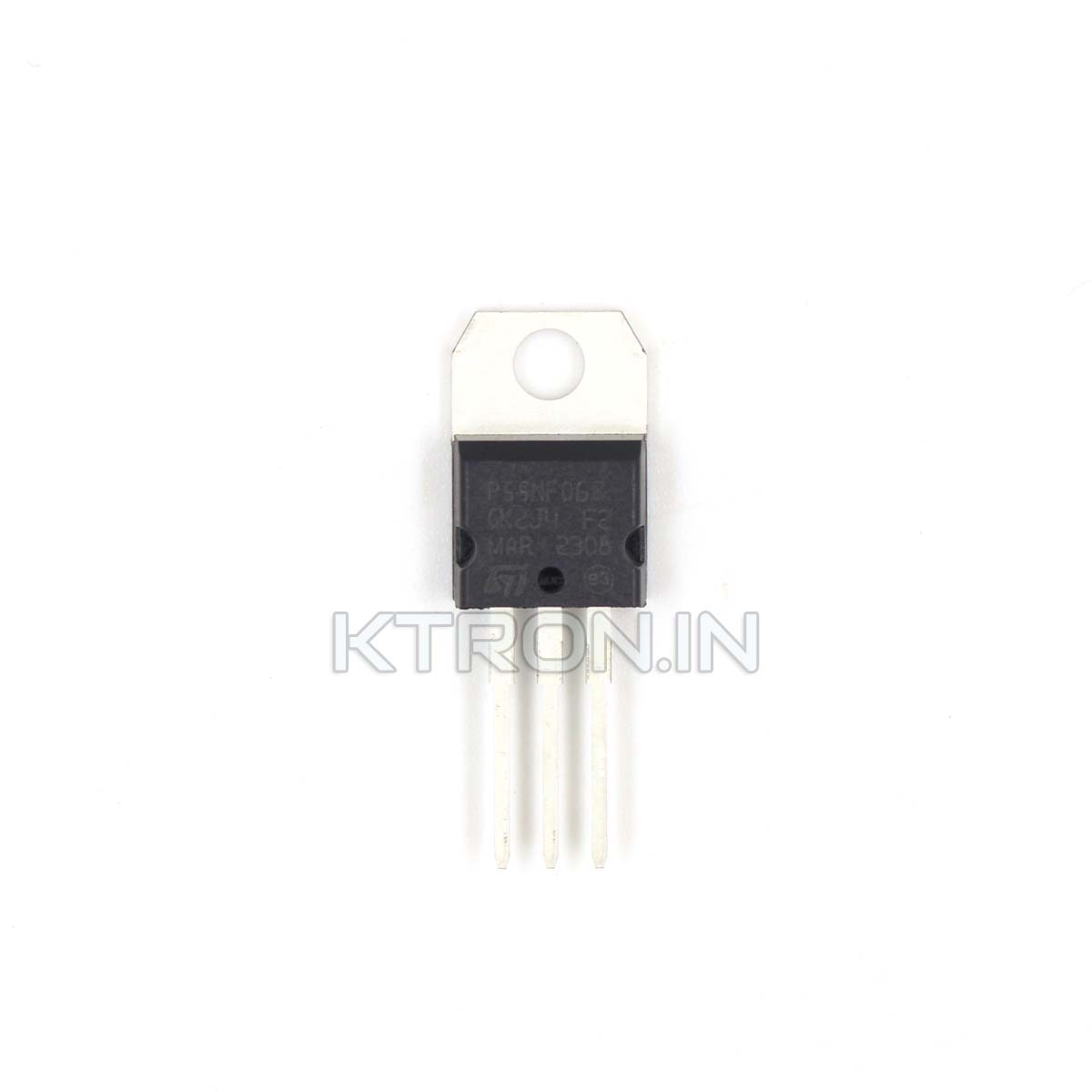

STP55NF06 N-Channel Power MOSFET – 60V / 50A – TO-220 Package
₹21.20 (Incl. of GST 18%)
GST Credit of ₹3.23available.
Know More
- VDS (Drain-Source Voltage): 60V
- VGS (Gate-Source Voltage): ±20V
- ID (Continuous Drain Current): 50A (TC = 25°C)
- ID (Pulsed): 200A (limited by SOA)
- RDS(on): 0.015Ω (Typ.) / 0.018Ω (Max.) @ VGS = 10V
- Power Dissipation (Ptot): 110W @ TC = 25°C
- Make: Generic
Description
The STP55NF06 is a high-performance N-Channel Power MOSFET featuring low on-resistance, fast switching speed, and excellent avalanche ruggedness. Built using ST’s advanced STripFET™ II technology, it minimizes input capacitance and gate charge, making it ideal for high-efficiency DC-DC converters, switching power supplies, and motor-control applications. This transistor provides reliable performance in industrial, automotive, and general-purpose switching applications.
Features
- Low RDS(on): 0.015Ω (Typ.) @ VGS = 10V, ID = 27.5A
- Drain-Source Voltage (VDS): 60V
- Continuous Drain Current (ID): 50A @ TC = 25°C
- High dv/dt capability (7V/ns)
- Fast switching and high efficiency
- 100% avalanche tested for ruggedness
- Available in a standard TO-220 package for easy mounting and heat dissipation
Specification
Additional information
| Weight | 3.45 g |
|---|
