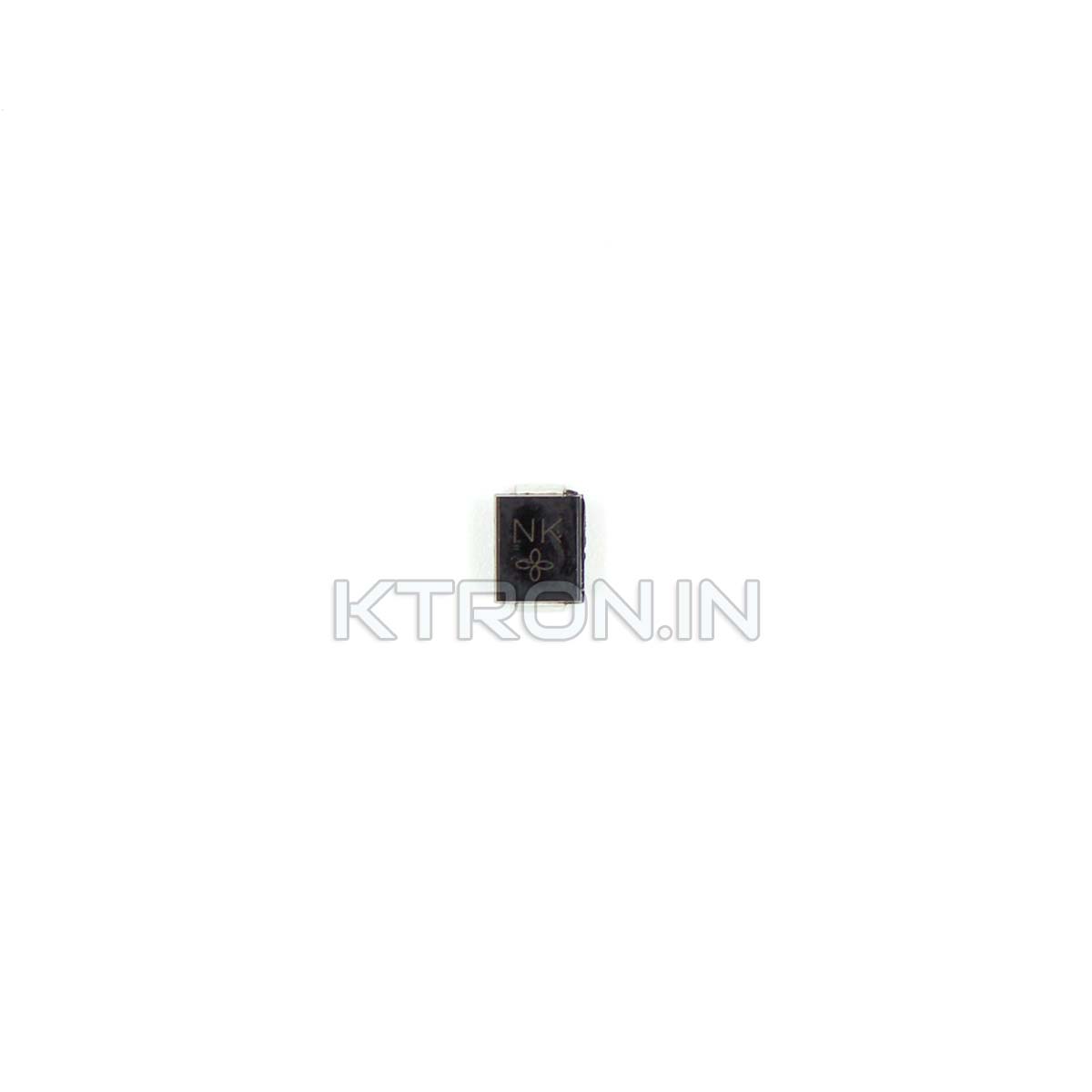

SMBJ60CA TVS Diode – Bidirectional – SMB (DO-214AA)

3.36 (Incl. of GST 18%)
GST Credit of 0.51available.
Know More

In stock

  • Break Down Voltage VBR: 73.7V(Max)
  • Maximum Clamping Voltage (V): 96.8V
  • Maximum Reverse Stand-Off Voltage (V): 60V
  • Peak pulse current Ipp: 6.2A
  • Maximum Reverse Leakage Current (uA): 5uA
  • Direction Type: Bi-Directional

3.36 (Incl. of GST 18%)
GST Credit of 0.51available.
Know More

Minimum Order Qty: 5
All orders placed before cut-off time will be dispatched same day.
For B2B orders, contact us on


This SMBJ60CA TVS Diode Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units specifically for protecting 60V supplied sensitive equipment against transient over voltages.


  • For surface mount application
  •  High temperature soldering guaranteed: 260 C / 10 seconds at terminals
  • Typical IR less than 1µA above 10V
  • Fast response time: Typically less than 1.0ps from 0 volt to BV min.
  •  Built-in strain relief
  •  Excellent clamping capability
  • Low profile package


Additional information

Weight0.25 g
