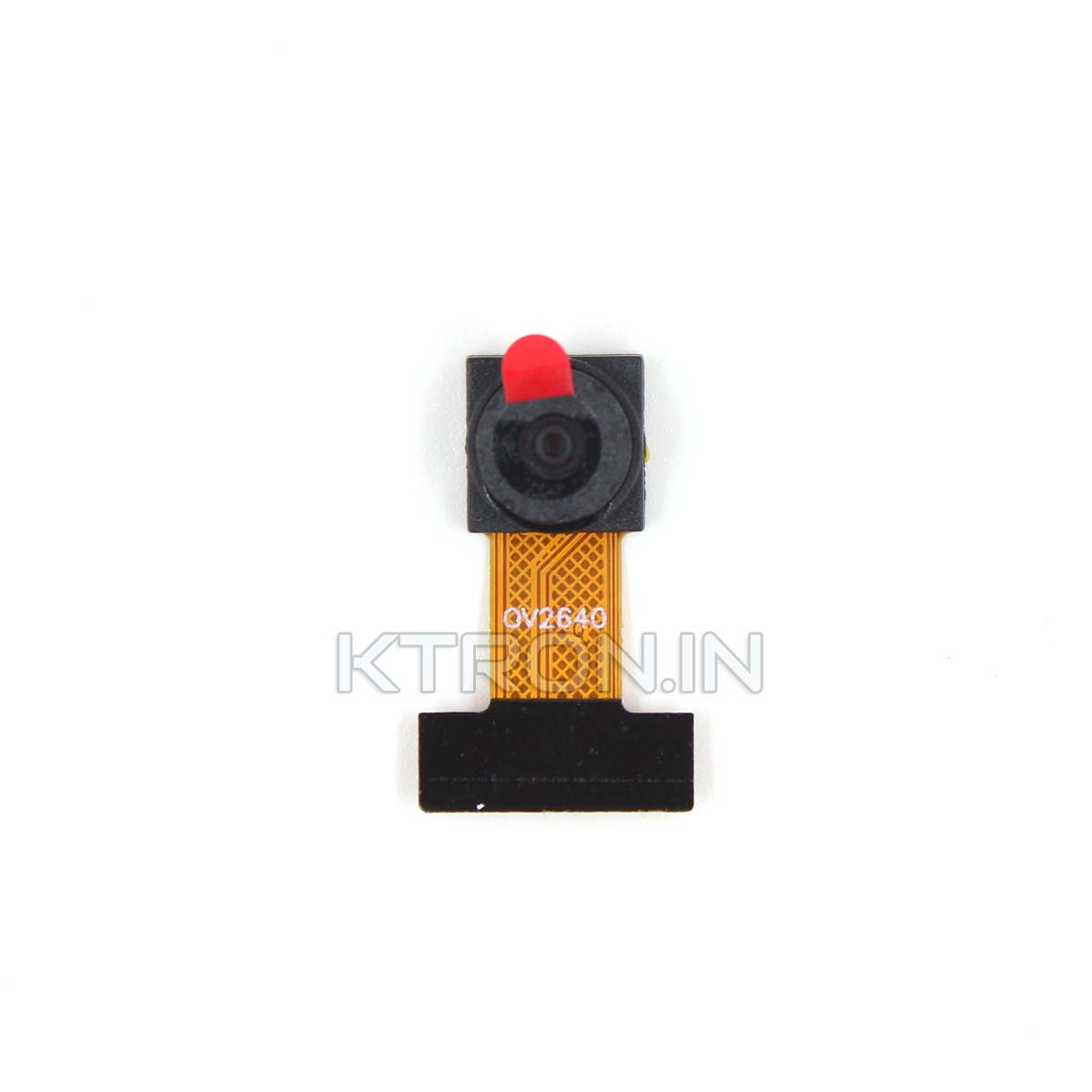

OV2640 Camera Module with 24 pin FFC/FPC SMD Connector
₹238.00 (Incl. of GST 18%)
GST Credit of ₹36.31available.
Know More
- Image Sensor: OV2640, 1/4″ CMOS, 2MP (1600×1200)
- Output Resolution: UXGA / SVGA / CIF
- Output Format: JPEG, YUV, RGB565, RAW10
- Connector:
- Pre-attached 24-pin FFC cable (soldered to module)
- Included 24-pin SMD FFC/FPC connector for PCB mounting
- Operating Voltages:
- AVDD: 2.5V–3.0V
- DVDD: 1.7V–1.9V
- IOVDD: 1.7V–3.0V
- Focus: Fixed Focus
- Lens FOV: ~65°
- Frame Rate:
- UXGA (1600×1200): up to 15 fps
- SVGA (800×600): up to 30 fps
- CIF (352×288): up to 60 fps
- Power Consumption: <60 mW typical
- Operating Temperature: −20 °C to +70 °C
- Cable Type: 24-Pin 0.5 mm pitch FFC ribbon, ~60 mm length
Get an alert when the product is in stock:
Description
The OV2640 Camera Module is a 2-megapixel CMOS image sensor with a built-in image signal processor and JPEG encoder, designed for embedded vision and IoT applications. This version comes with a 24-pin FFC cable already soldered to the camera module and includes a matching 24-pin SMD FFC/FPC connector for mounting on the main PCB. This plug-and-play configuration allows quick connection to ESP32-CAM, AI-Thinker, STM32, and Raspberry Pi boards without additional wiring or soldering on the camera side.
Features:
- 2MP high-quality CMOS sensor with built-in JPEG compression
- Includes soldered 24-pin FFC ribbon cable for easy connection
- Comes with SMD 24-pin FFC/FPC connector for PCB soldering
- Compact, plug-and-play design — no soldering required on camera side
- Low-power operation ideal for battery or IoT devices
- Compatible with ESP32-CAM, AI-Thinker, Arduino, Raspberry Pi, STM32, and similar platforms
- Supports hardware JPEG compression for faster image transfer
- Excellent low-noise and high dynamic range imaging
Specification
Additional information
| Weight | 5 g |
|---|
