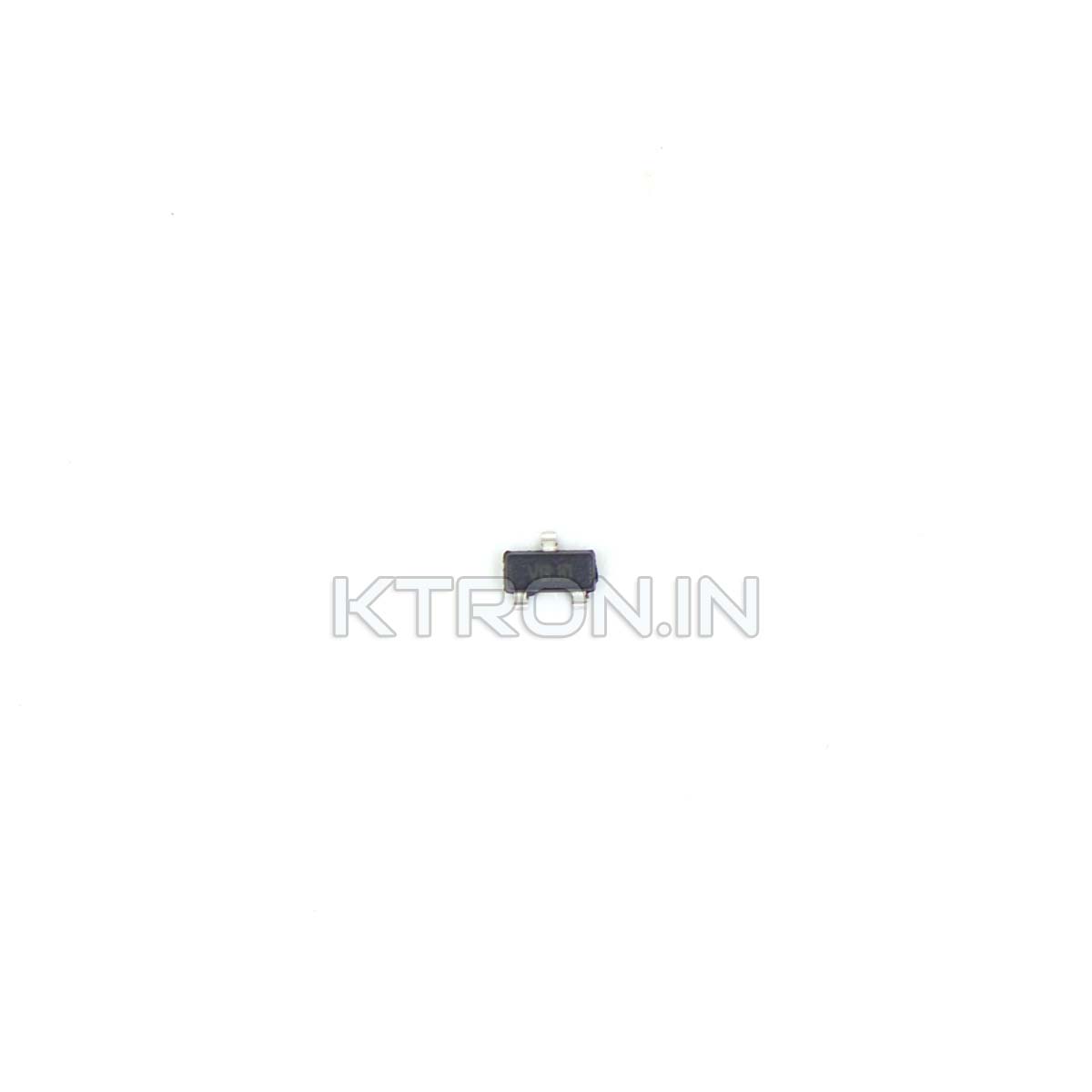

MCP1541T-I/TT IC SOT23 – Precision Voltage Reference IC – Microchip

The MCP1541T-I/TT IC is a precision voltage reference IC with an output voltage of 4.096V. It uses advanced CMOS circuit design and EPROM trimming to provide high initial accuracy (±1% max.) and excellent temperature stability (±50 ppm/°C max.).

With a low quiescent current of 100 µA (max.) at 25°C, this IC offers superior long-term stability compared to traditional Zener diode references. Packaged in SOT-23-3, it is suitable for industrial and precision applications across the temperature range of -40°C to +85°C.

Features:

• Precision Voltage Reference IC
• Output Voltage: 4.096V
• Initial Accuracy: ±1% (maximum)
• Temperature Drift: ±50 ppm/°C (maximum)
• Output Current Drive: ±2 mA
• Maximum Input Current: 100 µA @ +25°C
• Package Type: SOT-23-3
• Industrial Temperature Range: -40°C to +85°C
• Low quiescent current, ideal for battery-powered systems

Applications:

• Battery-Powered Systems
• Handheld Instruments
• Instrumentation and Process Control
• Test and Measurement Equipment
• Data Acquisition Systems
• Communications Equipment
• Medical Equipment
• Precision Power Supplies
• 8-bit, 10-bit, 12-bit ADCs (Analog-to-Digital Converters)
• DACs (Digital-to-Analog Converters)
