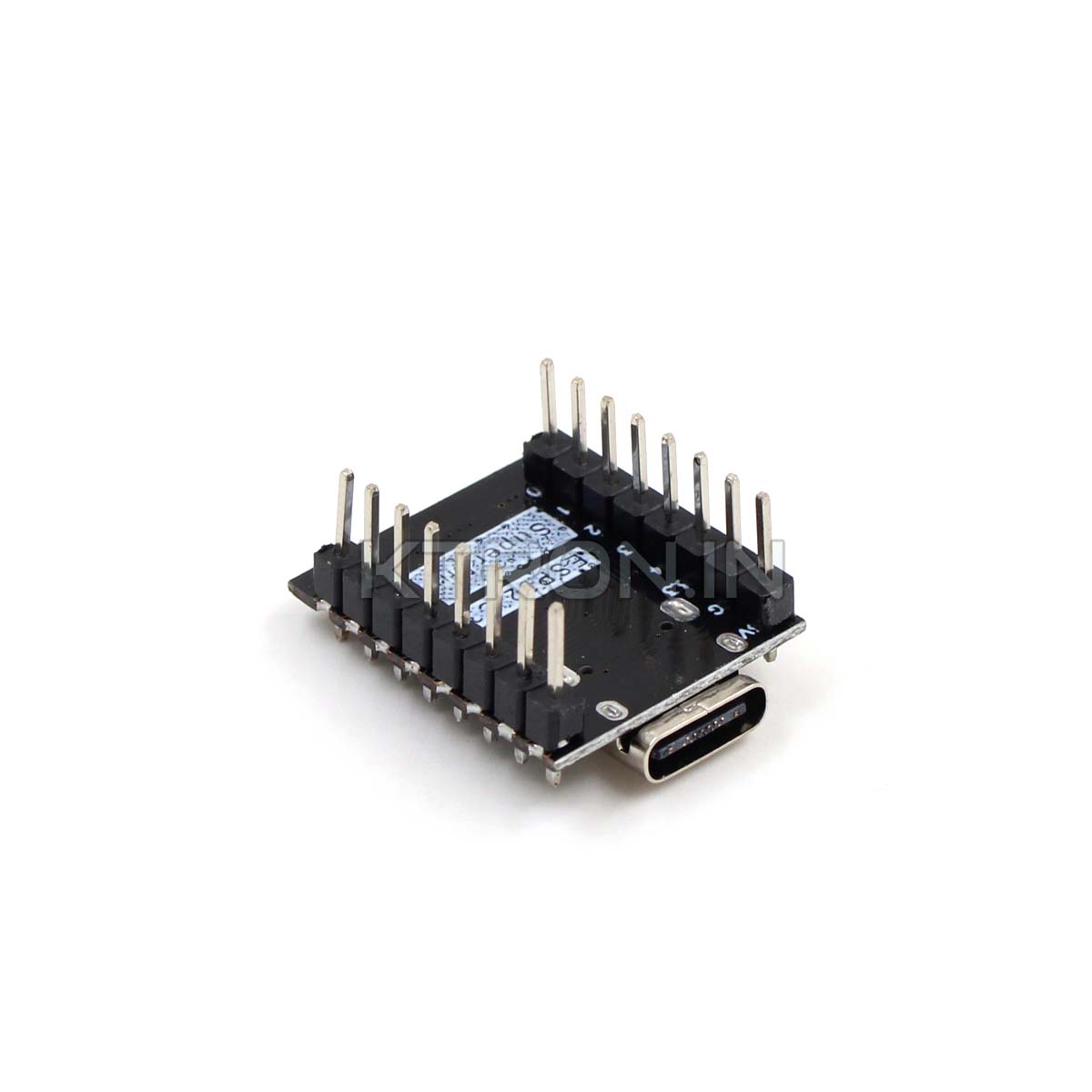

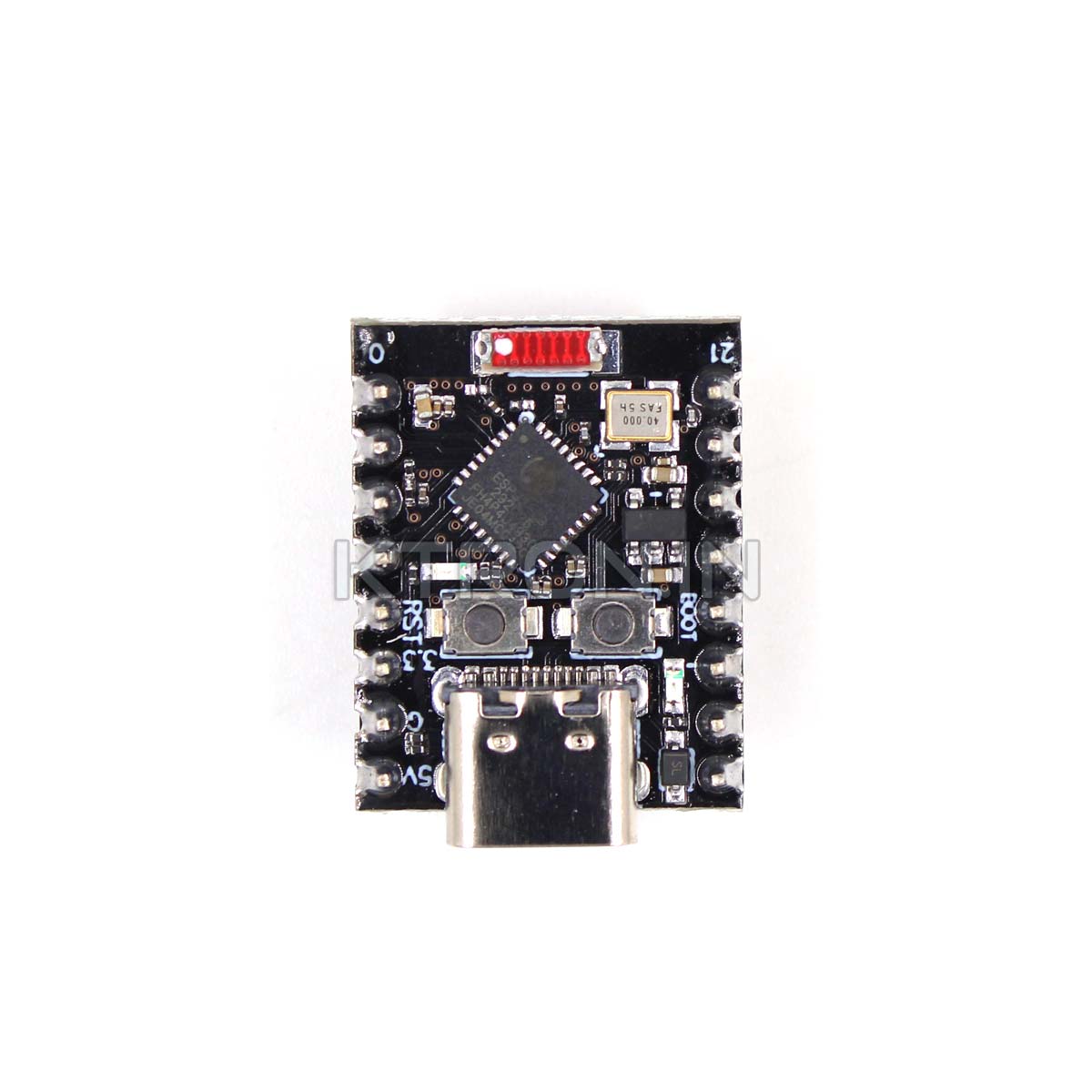

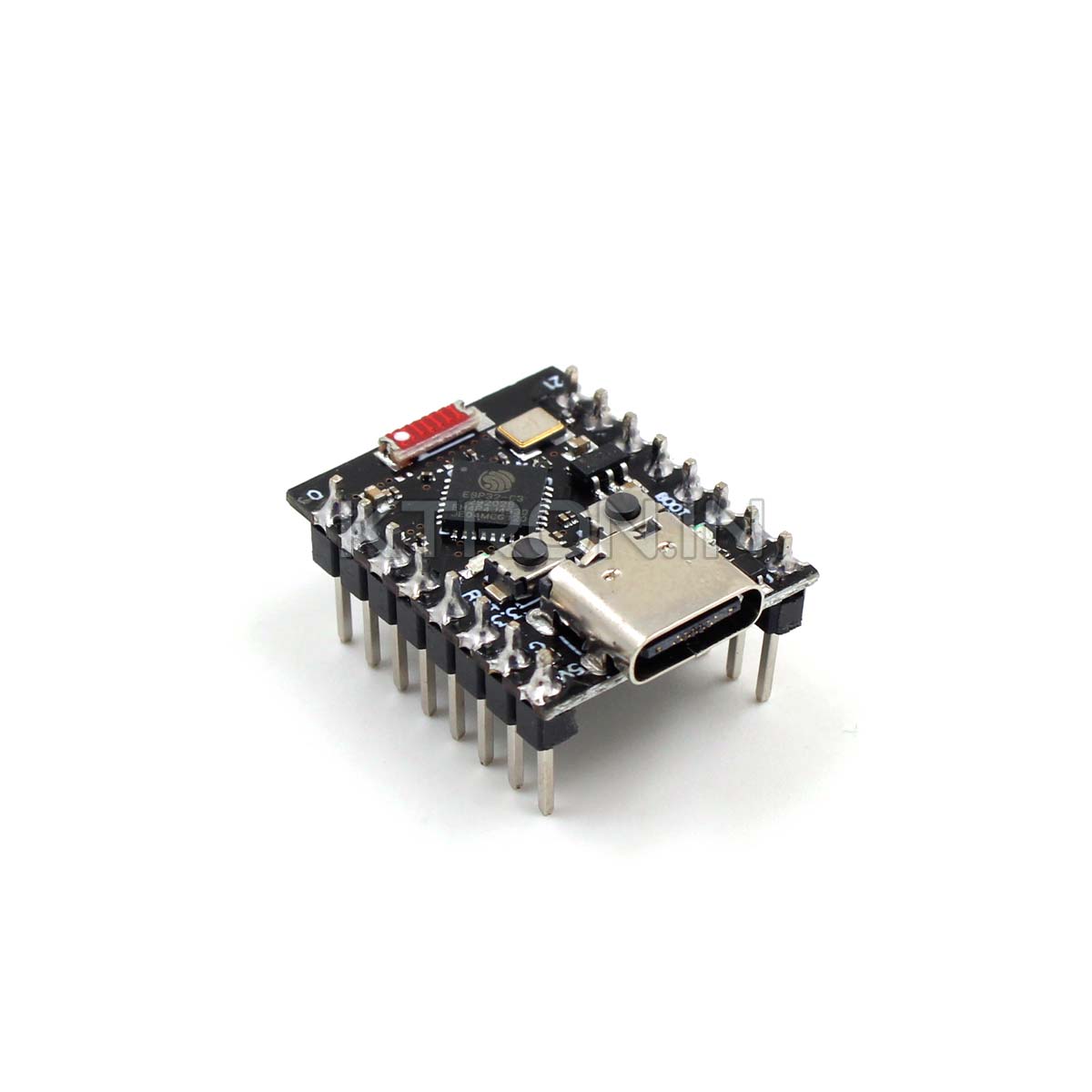

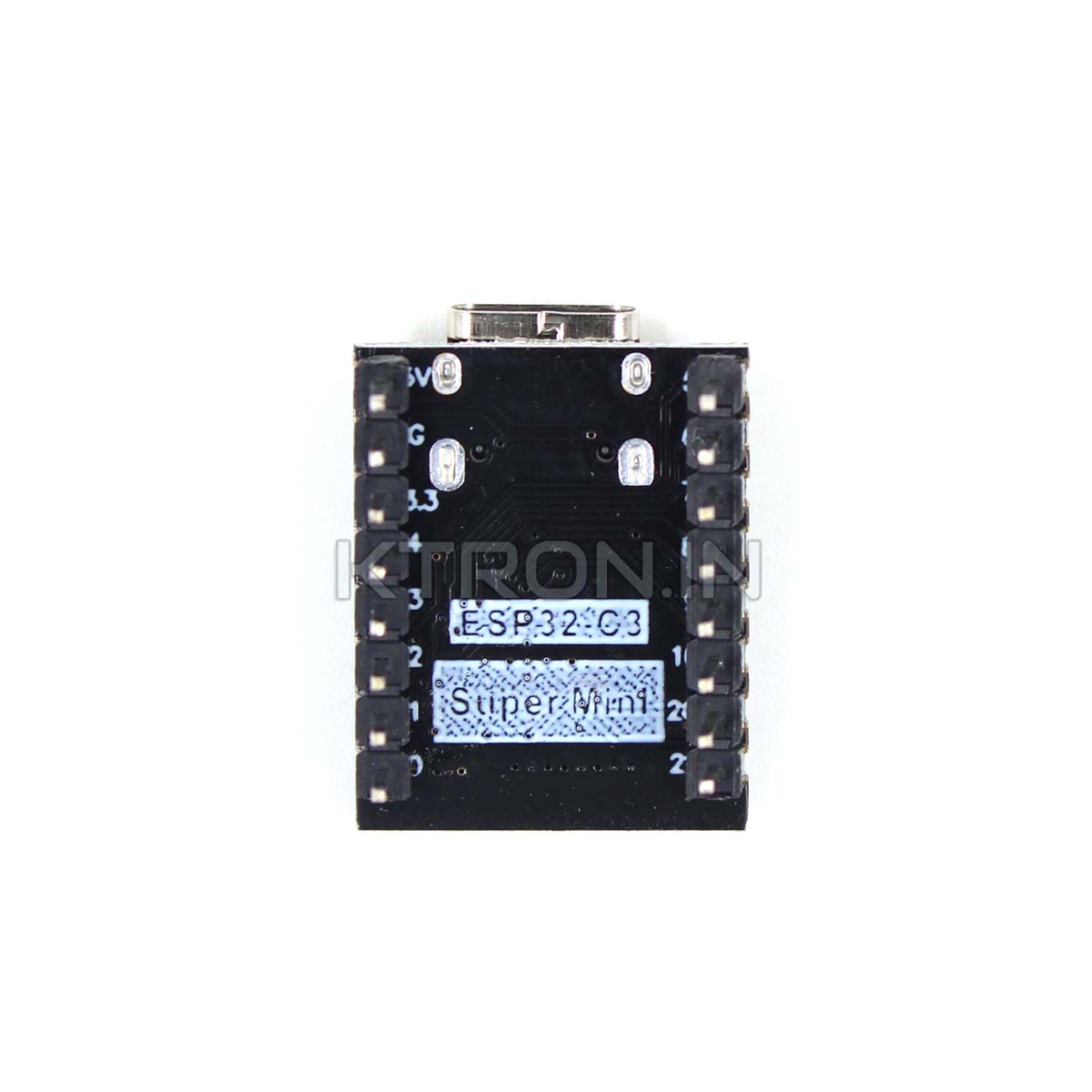

ESP32-C3 Super Mini Development Board Module
₹265.00 (Incl. of GST 18%)
GST Credit of ₹40.42available.
Know More
- Board type: ESP32-C3 Super Mini Development Board
- MCU: ESP32-C3 (32-bit RISC-V single-core)
- Clock frequency: Up to 160 MHz
- Wireless connectivity: Wi-Fi 802.11 b/g/n + Bluetooth LE
- USB interface: On-board USB (programming & power)
- Flash memory: 4 MB
- Operating voltage: 5 V via USB / 3.3 V logic
- Interfaces: GPIO, UART, SPI, I²C, PWM, ADC
- Operating temperature range: –40 °C to +85 °C
Description
The ESP32-C3 Super Mini Development Board is a compact, ready-to-use IoT development module based on the ESP32-C3 RISC-V microcontroller. It integrates an on-board USB interface for direct programming and power supply, eliminating the need for an external USB-to-UART converter. Designed for rapid prototyping and space-constrained designs, this board provides reliable 2.4 GHz Wi-Fi and Bluetooth LE connectivity with low power consumption, making it ideal for IoT nodes, smart devices, and embedded control applications.
Features:
- ESP32-C3 based development board
- On-board USB interface for programming and power
- Integrated 2.4 GHz Wi-Fi and Bluetooth LE
- Compact “Super Mini” form factor
- No external USB-to-serial adapter required
- Supports low-power and deep-sleep modes
- Breakout GPIO pins for easy prototyping
Specification
Additional information
| Weight | 4.99 g |
|---|
