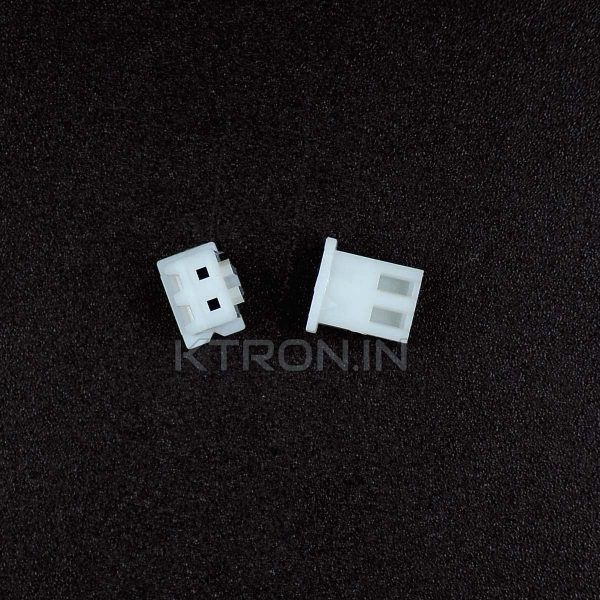

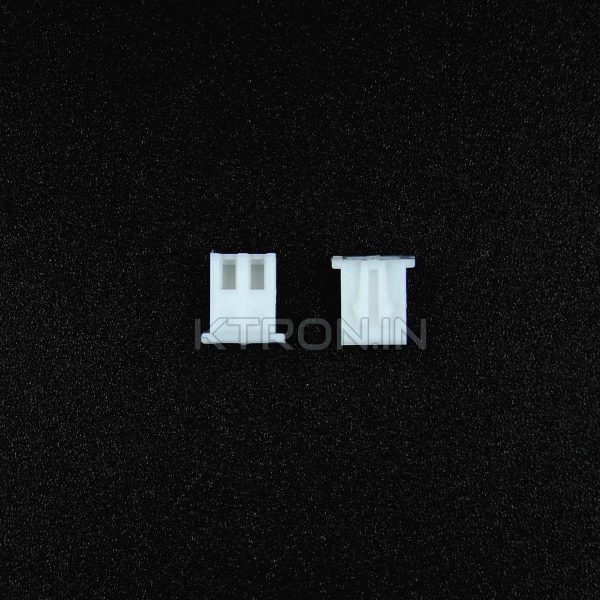

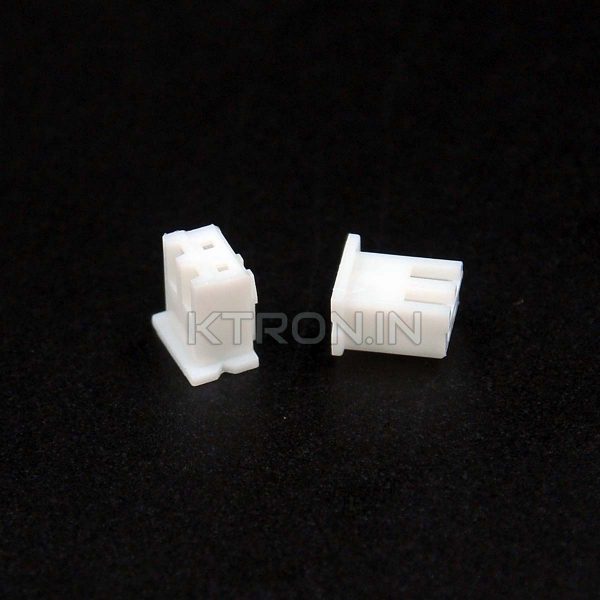

2 Pin JXT XH Female Connector – 2.54mm Pitch
₹0.24 (Incl. of GST 18%)
GST Credit of ₹0.04available.
Know More
- 2 pin JST XH Series Female Connector
- Pitch: 2.54 mm
- Crimp pins can be easily inserted
- Locking mechanism for connector and crimped wires
- To be Bought with JST XH Crimp Terminal
Frequently Bought Together
- This item: 2 Pin JXT XH Female Connector - 2.54mm Pitch(₹0.24 Incl. of GST)
- JST XH Crimp Terminal(₹0.71 Incl. of GST)
Description
This is a 2 Pin JXT XH Female Connector. This is a wire to board connector. It is very small with mounting height of 9.8 mm. It is a crimp style connector, and a disconnectable type, and a top entry version.
The wires needs to be crimped to terminal, which in turn can be fitted into this female connector, which will be connected to male connector soldered on any board. It has a good locking mechanism, and requires force to remove the female connector from male connector on board. There by removes the problem of unwanted disconnection.
- Current Rating: 3 A
- Voltage Rating: 250 V
- Pitch: 2.54 mm
- Pins: 2
Package Includes:
- 1 x 2 Pin JST XH Female Connector
Specification
Additional information
Weight | 0.2 g |
---|
