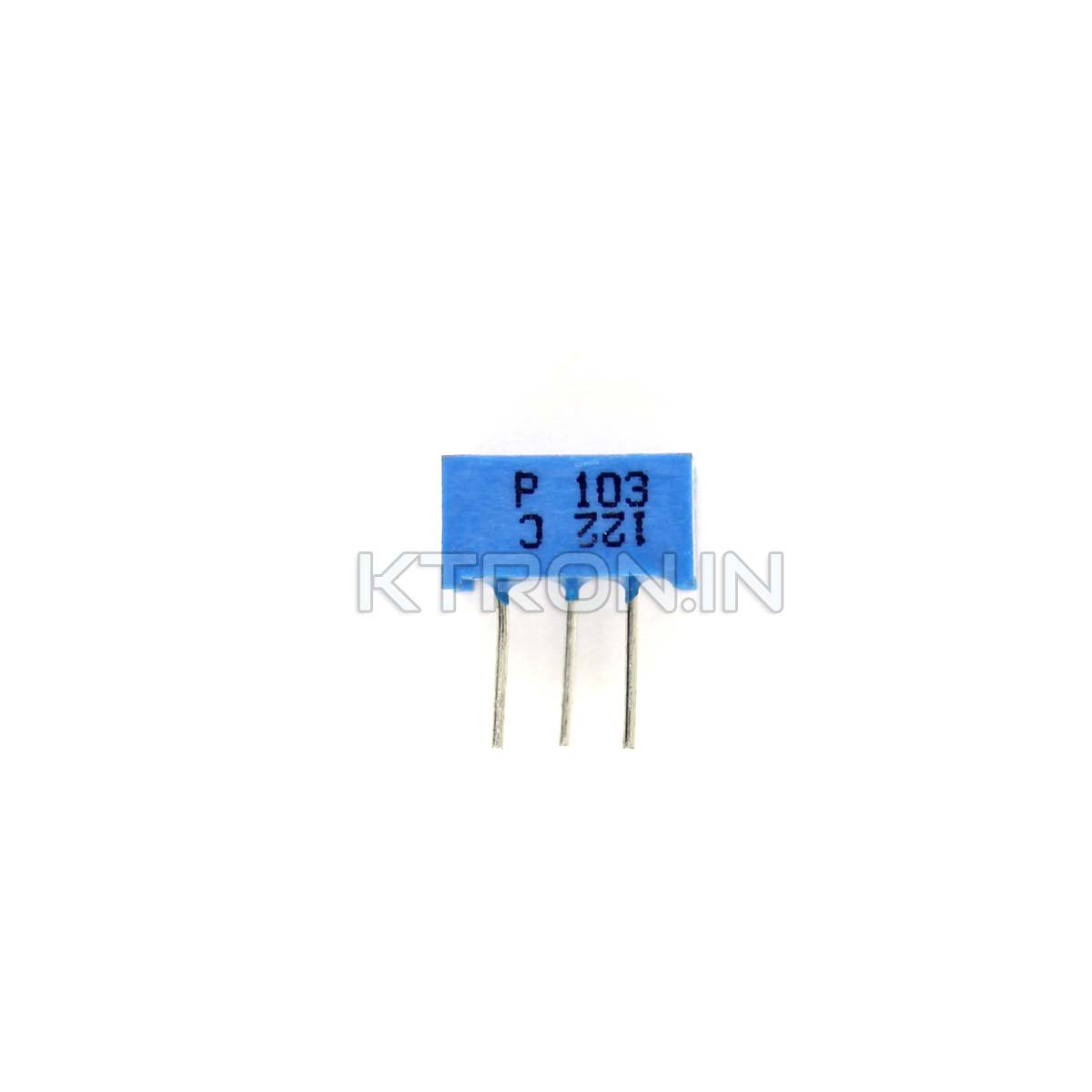

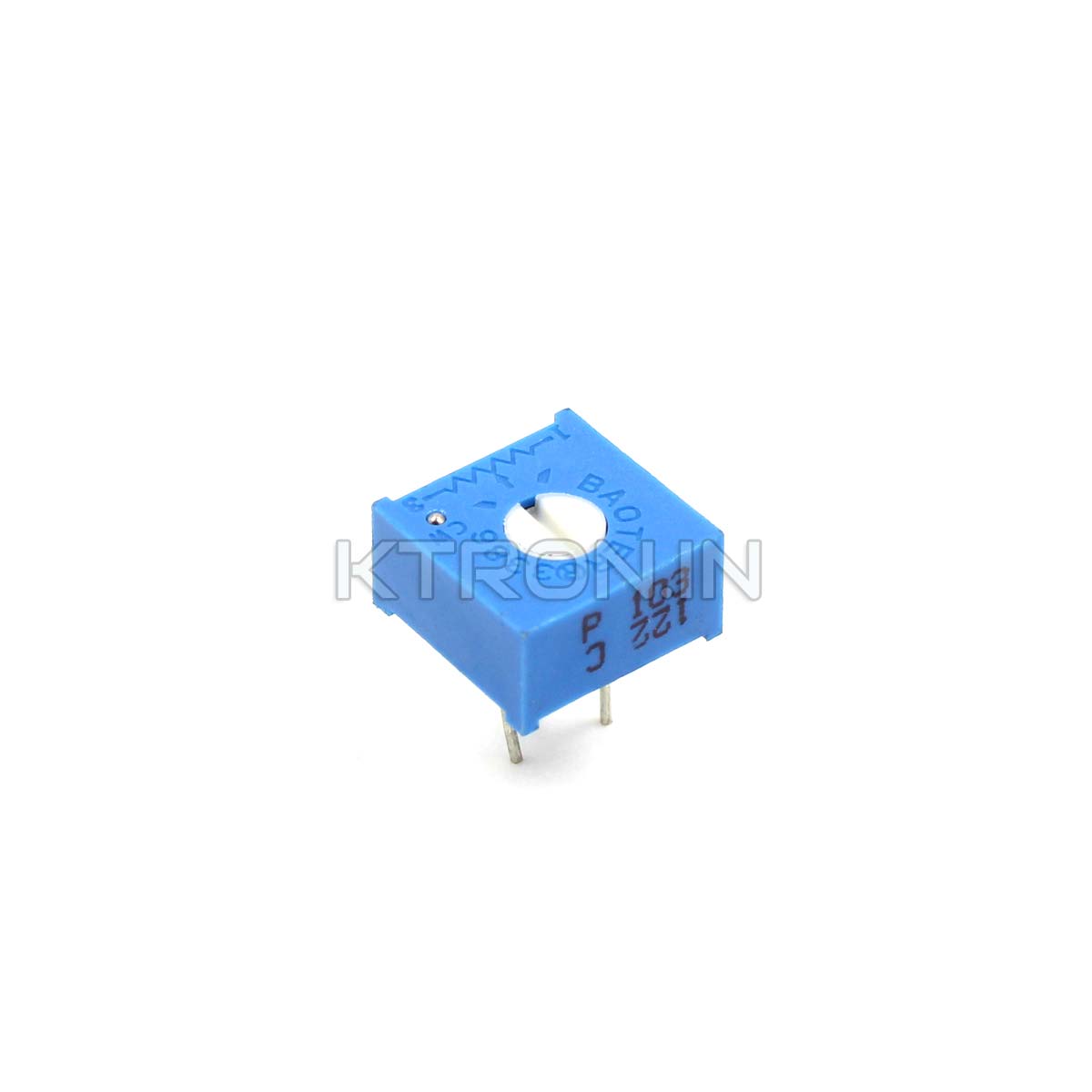

10K Ohms 3386 Multiturn Trimpot Potentiometer
₹12.35 (Incl. of GST 18%)
GST Credit of ₹1.88available.
Know More
- Resistance Value: 10K Ohms
- Resistance Tolerance: ±10% (typical)
- Adjustment Type: Multiturn (top adjust)
- Power Rating: 0.5W
- Temperature Coefficient: ±100 ppm/°C (typical)
- Mounting Type: Through-hole (THT)
- Operating Temperature Range: –55°C to +125°C
- Package Type: 3386 Multiturn Trimpot
Description
The 10K Ohms 3386 Multiturn Trimpot Potentiometer is a precision adjustable variable resistor designed for fine calibration and tuning applications in electronic circuits. It features a sealed cermet resistive element and a multi-turn adjustment mechanism, allowing accurate resistance setting over multiple rotations. With its compact through-hole package and stable performance, this trimpot is widely used in power supplies, sensor calibration, audio circuits, and industrial control systems.
Features:
- Multiturn adjustment for precise resistance control
- Nominal resistance value of 10K ohms
- Sealed cermet element for stable and reliable performance
- Compact 3386 series through-hole package
- High adjustment resolution compared to single-turn trimmers
- Suitable for calibration and fine-tuning applications
- Good mechanical stability and long operational life
Specification
Additional information
| Weight | 1.35 g |
|---|
